In high-end retail storefronts, luxury brand boutiques, automotive showrooms, airport duty-free corridors, and temporary exhibition pavilions, traditional opaque digital signage displays present a persistent architectural dilemma: they deliver vibrant dynamic advertising, but their bulky solid chassis blocks daylight and obscures merchandise displays.
The foldable transparent LED screen (often called a holographic transparent LED poster display) resolves this conflict. With optical transparency exceeding 80% to 95% and daylight-readable brightness of ≥ 2,500 nits, these displays project floating, holographic-like animations in front of window glazing while keeping the store interior visible.
Modern foldable transparent LED posters add an integrated, tool-free folding chassis and precision caster wheels. This portable design eliminates complex steel frames and lengthy installation timelines. This B2B buyer’s guide covers optical transmittance, folding mechanics, multi-screen cascading, and procurement criteria.
1. Introduction: The Evolution of Floating Visuals and Retail Transparency
For brands that need high-impact window communication without sacrificing architectural openness, transparent LED posters provide a practical middle ground between fixed glass walls and opaque digital signage.
2. Optical Physics: 80%–95% Transmittance Meets Daylight Brightness
Evaluate two interdependent engineering parameters when comparing a foldable transparent LED screen:
Micro-Bar Louver Architecture
- 80% to 95% high transmittance: Slim micro-louvers minimize visual blockage. From viewing distances beyond 2–3 meters, the black PCB strips become visually unobtrusive.
- Natural light preservation: Retail spaces retain daylight, preserving an open aesthetic and reducing architectural lighting loads.
Sunlight-Readable High Brightness (≥ 2,500 nits)
- Indoor LCD kiosks and transparent OLED panels often produce only 400–700 nits and fade into window reflections.
- Professional transparent LED posters generate ≥ 2,500 cd/m² (nits), cutting through solar glare and street-level reflections while maintaining vivid colour and contrast.
3. Mechanical Innovation: Tool-Free Folding and All-in-One Portability
Traditional transparent LED displays are fixed installations requiring structural engineers, ceiling cables, and permanent conduits. Foldable transparent LED posters turn the technology into an agile, multi-venue asset.
[ FULLY UNFOLDED - OPERATIONAL ] [ TOOL-FREE FOLDED - TRANSIT ]
+--------------------------------+ +------------------------+
| [ High-Transmittance Mesh ] | ==========> | [ Protective Folded ] |
| (Floating Hologram Video) | (3-sec fold) | [ Mesh Panels Stored ] |
| [ Central Hinge ] | | [ Ultra-Compact Case ] |
+--------------------------------+ +------------------------+
(O) (O) (O) (O)

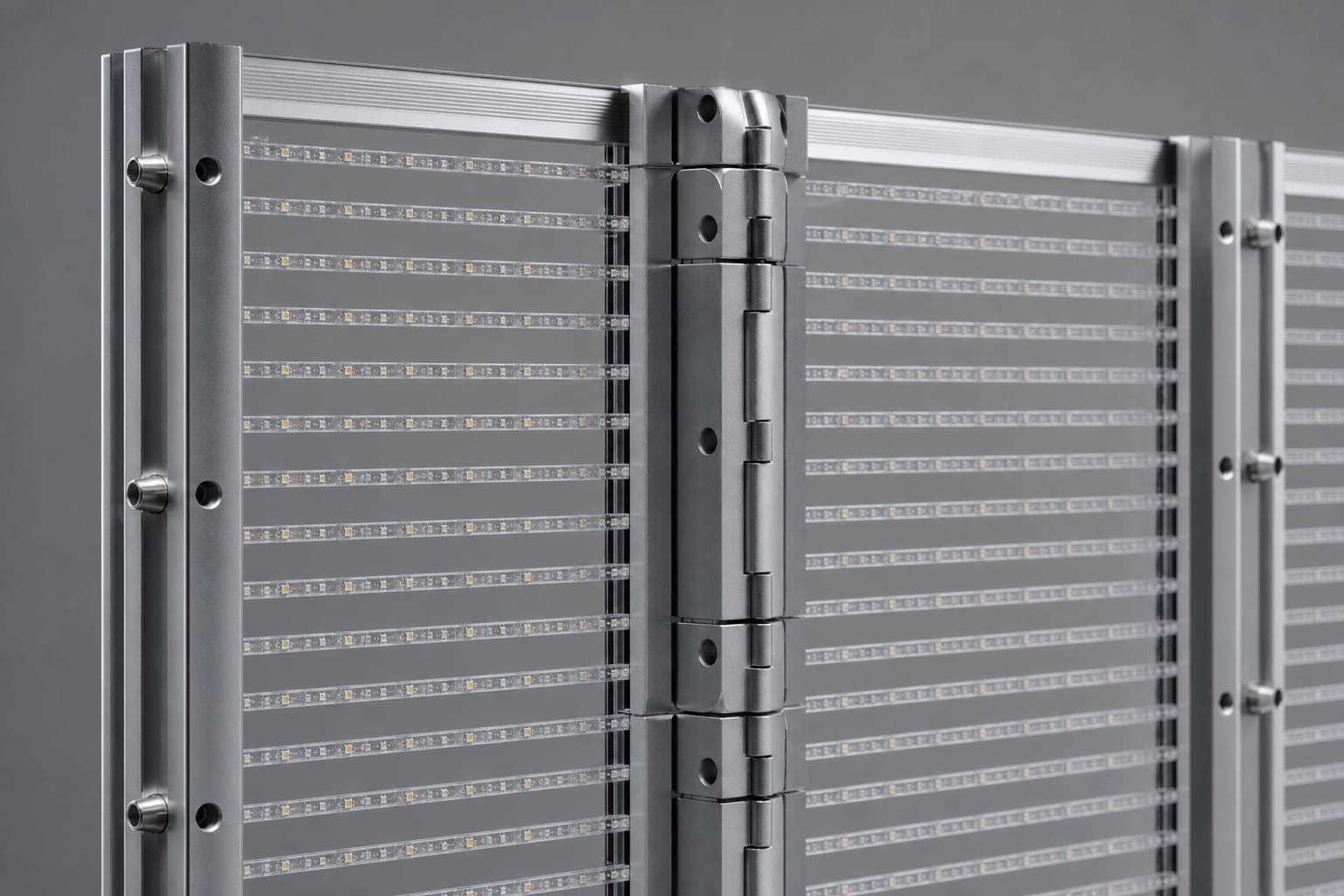

[ Heavy-Duty Base Beam ] [ Silent Swivel Casters ]Integrated Central Bi-Fold Hinge
A structural hinge lets the display wings fold inward in under three seconds without disconnecting internal ribbon cables or power buses. Confirm the hinge is rated for repeated commercial deployments.
Plug-and-Play Base Station
The weighted aluminum base can integrate the switched-mode power supply, async/sync media player, wireless antenna, and cooling system in an ultra-slim footprint.
Silent Swivel Casters
Shock-absorbing wheels let a retail associate or event technician roll the poster into position, unfold it, and power it up with minimal setup.
4. Multi-Poster Cascading: Standalone Display vs. Seamless Video Wall
[ POSTER 1 ] [ POSTER 2 ] [ POSTER 3 ] [ POSTER 4 ]
+--------------+ +--------------+ +--------------+ +--------------+
| |<->| |<->| |<->| |
| [ Magnetic ] | | [ Magnetic ] | | [ Magnetic ] | | [ Magnetic ] |
| [ Interlock ]| | [ Interlock ]| | [ Interlock ]| | [ Interlock ]|
+--------------+ +--------------+ +--------------+ +--------------+
Seamless Synchronized Panoramic Window Video Wall- Standalone mode: A mobile digital totem, typically 750×1500 mm or 1000×1500 mm, for promotional loops, product spotlights, or QR menus.
- Magnetic seamless cascading: Alignment magnets and zero-gap positioning pins connect 3–10 units into a synchronized panoramic wall with minimal vertical bezel interruption.
5. Technical Comparison: Foldable Transparent LED Posters vs. Alternatives
| Feature | Foldable Transparent LED Poster | Fixed Architectural Transparent LED | Transparent OLED | Traditional Opaque LED Poster |
|---|---|---|---|---|
| Optical transmittance | 80%–95% | 70%–85% | 40%–45% | 0% |
| Peak brightness | ≥ 2,500 nits | 3,500–5,500 nits | 400–600 nits | 800–1,200 nits |
| Mobility | Foldable + wheels | Permanent | Low; fragile glass | Moderate |
| Daylight visibility | Excellent | Excellent | Poor in glare | Good, but blocks view |
| Installation | Instant plug-and-play | Steel frame and wiring | Stand mounting | Stand mounting |
| Multi-unit splicing | Magnetic, tool-free | Permanent bolting | Bezel gaps | Mechanical locks |
6. Real-World Commercial B2B Application Scenarios

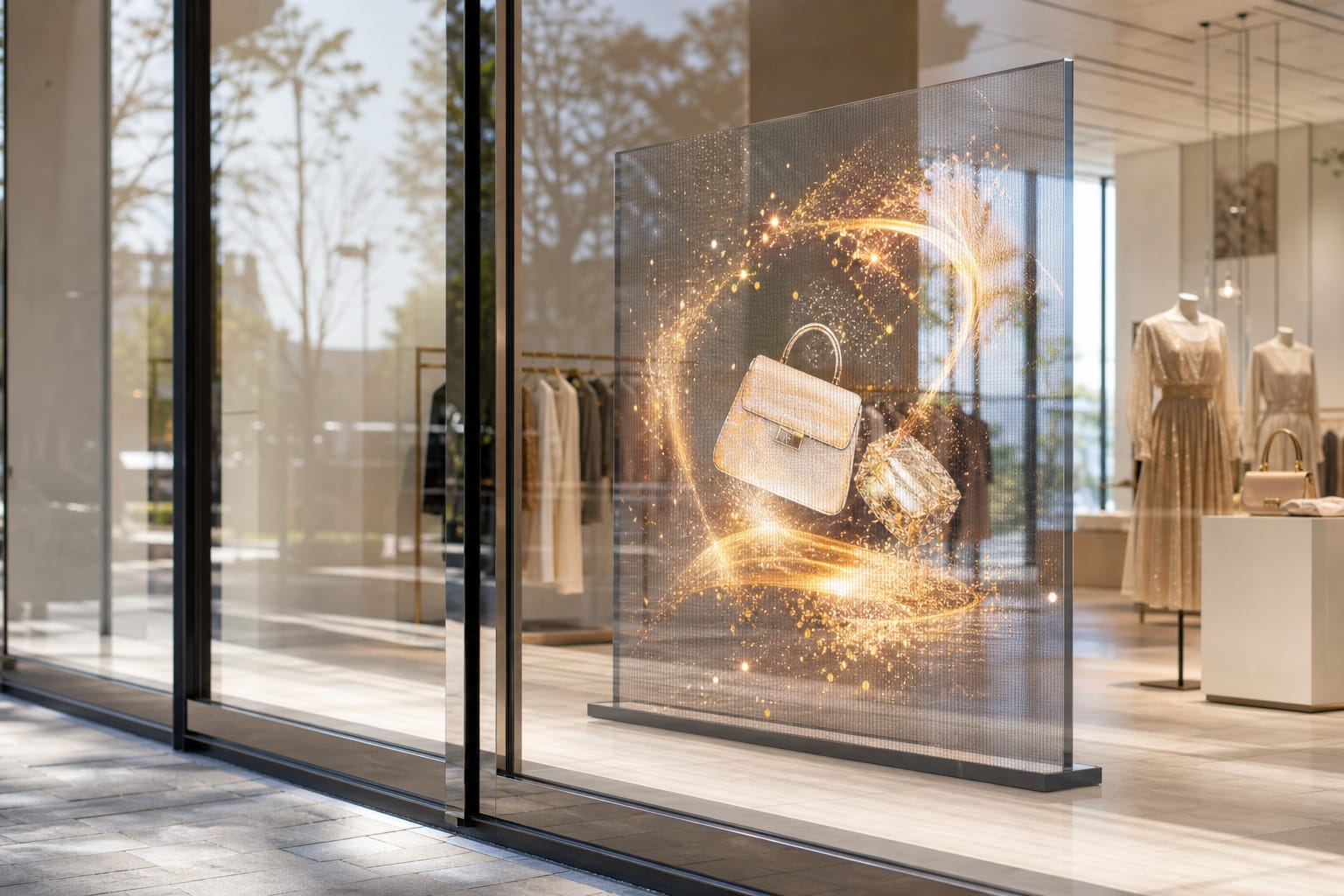

Luxury Fashion, Jewelry, and Watch Boutiques
Positioned behind window glass, the screen can display sparkle particles, runway models, or watch movement animations around physical mannequins without obscuring the store architecture.
Automotive Flagship Showrooms
Next to concept vehicles, animated holographic technical schematics can explain electric drivetrains and battery cooling while preserving an unobstructed view of the car.
Pop-Up Brand Activations and Trade Shows
Four to six folded posters can travel in a compact flight case, unfold in minutes, and magnetically form a 4–6 meter transparent backdrop.
Real Estate Sales Centers and Financial Institutions
Interactive architectural master plans and market data can be shown while preserving exterior views and daylight.
7. B2B Procurement and Quality Inspection Checklist
- True transmittance verification: Request verified 80%–95% ratings for the selected P3.91 or P6.25 model.
- Structural hinge fatigue testing: Verify a rating of more than 5,000 folding cycles without deformation or harness wear.
- Colour uniformity and calibration: Confirm factory sub-pixel calibration across cascaded posters.
- Wireless cloud cluster control: Check Wi-Fi, 4G, and LAN scheduling for multiple branches.
- Aviation road-case packaging: Specify shock-absorbing cases with dual- or quad-unit foam slots.
8. Frequently Asked Questions
What video content works best?
Pure black backgrounds (RGB 0, 0, 0) create the strongest effect because black pixels emit no light, leaving the surrounding window visually transparent.
What pixel pitch is ideal?
For 2–8 meter storefront viewing distances, P3.91 offers crisp typography and logos. For atriums and halls viewed beyond 6 meters, P6.25 can provide higher transmittance at a lower project cost.
Can the display be suspended?
Yes. Quick-rigging points on the top frame allow the floor base to be removed and the panel suspended from a ceiling truss.
9. Conclusion and Next Steps
Foldable transparent LED screens unite daylight transparency, high-impact holographic brightness, and instant tool-free portability. Modular posters with magnetic cascading capabilities unlock flexible visual merchandising for retail brands and event contractors.
Contact USER SDT for technical data sheets, transmittance reports, and wholesale B2B pricing for the Foldable Transparent LED Hologram Poster Screen Series.
