1. Introduction: Breaking Stage Monotony with Dynamic Curved LED Walls

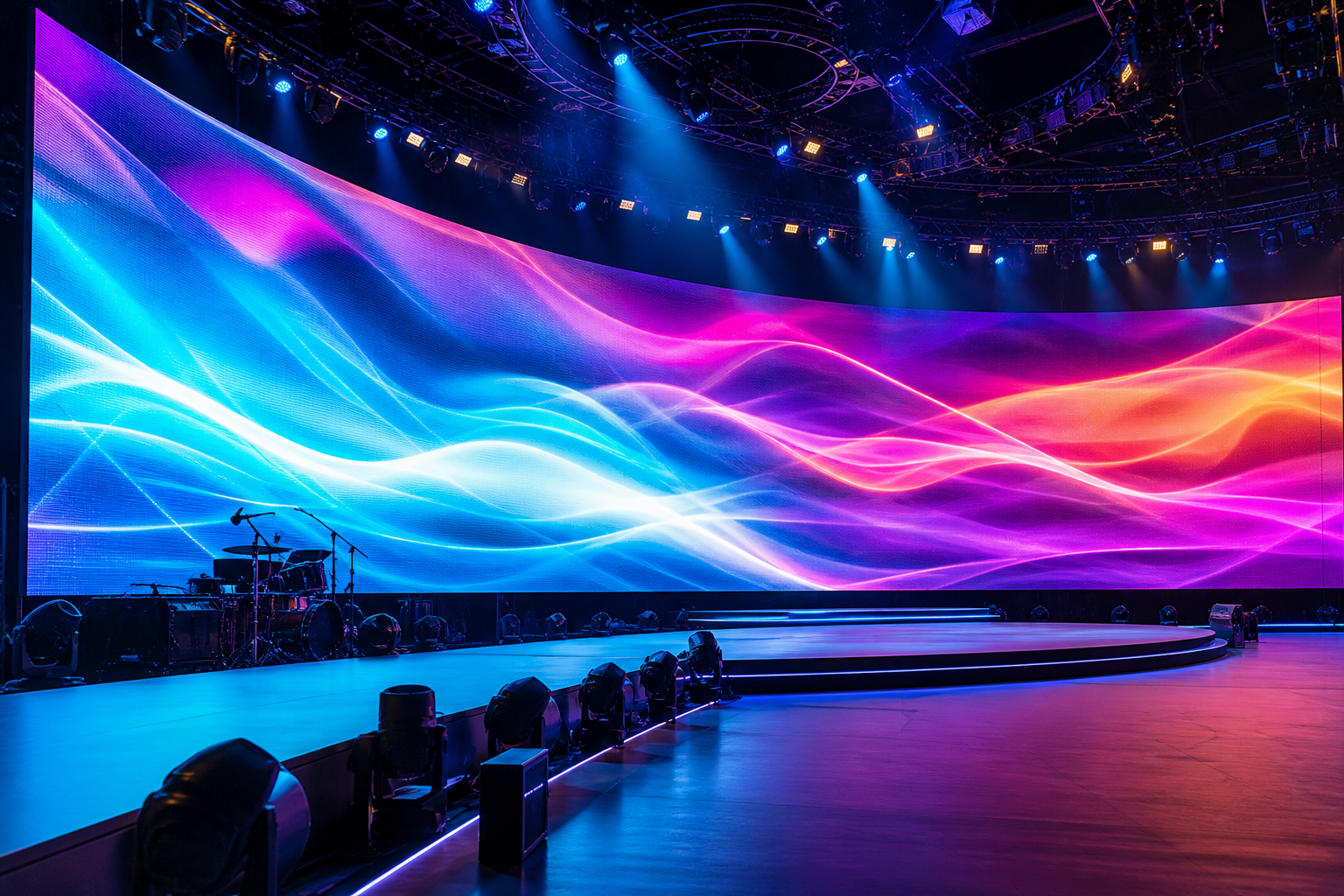

In modern live entertainment, concert touring, high-profile corporate product launches, esports tournaments, and broadcast studios, flat rectangular video walls are increasingly giving way to dynamic, three-dimensional curved rental LED displays (also known as arc-shaped staging screens). Staging designers and visual directors use curved screens to wrap around presenters, create panoramic field-of-view backdrops, construct cylindrical video columns, and immerse audiences inside organic visual environments.

Unlike fixed permanent curved installations that rely on flexible rubber modules mounted to customized architectural steel structures, rental curved LED video walls must withstand the grueling demands of fast-paced event production: rapid assembly, frequent teardown, repetitive transit in flight cases, and frequent switching between concave (inward-curving) and convex (outward-curving) geometries.

For AV rental houses and event production companies, investing in a versatile curved rental LED inventory requires evaluating angle lock precision, structural stiffness, seamless module alignment, power-box modularity, and optical broadcast compliance. This comprehensive B2B buyer’s guide explores the core engineering demands, mechanical angle-locking mechanisms, optical standards, and procurement checklists for selecting professional curved rental LED panels.

2. Key Mechanical and Optical Demands for Staging Curvature

Deploying curved LED video walls in live staging environments introduces unique mechanical challenges that standard flat rental panels never encounter:

High-Precision Angle-Locking Mechanisms

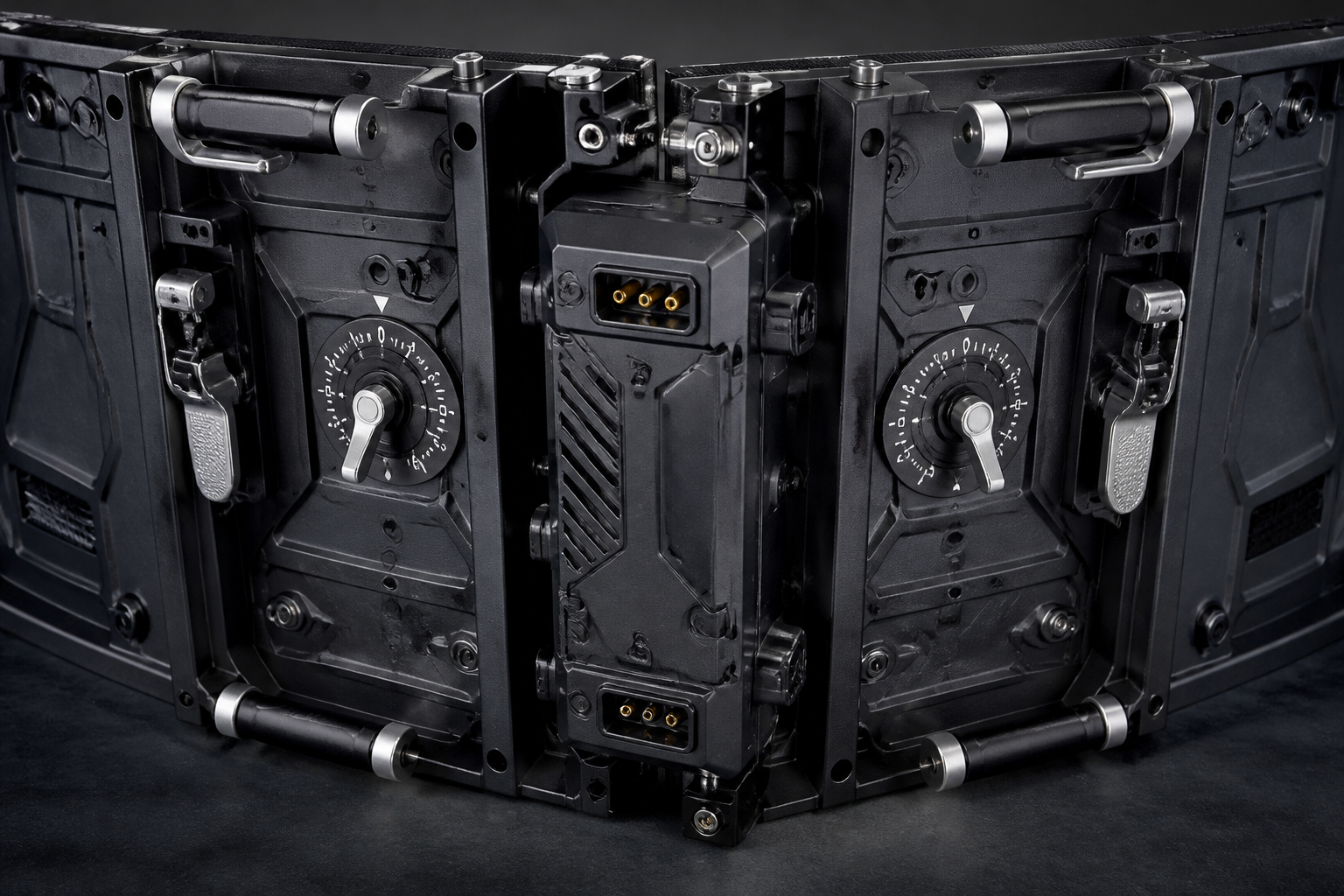

To construct smooth, continuous curves without jagged facet artifacts or physical cabinet collisions, rental panels utilize high-precision dial angle locks:

• Bi-Directional Angular Adjustment: Supporting seamless transitions from −10° (Convex/Outer Curve) to +15° (Concave/Inner Curve) in fine 2.5° or 5° calibrated increments.
• Positive-Lock Safety Latches: Spring-loaded quick-release locking pins that prevent inadvertent angle slippage under the heavy tension of suspended video arrays.
• Zero-Gap Module Beveling: Cabinet edges engineered with precision beveled chamfers to eliminate dark seam gaps on concave curves and prevent physical corner impact damage on convex curves.

Rigidity, Alignment, and Fast Rigging

• Die-Cast Magnesium / Aluminum Alloy Cabinets: Ultra-lightweight (500 × 500 mm or 500 × 1000 mm) frames engineered with tight mechanical tolerances (≤ ±0.1 mm) to guarantee millimeter-level alignment across multi-cabinet spans.
• Heavy-Duty Fast-Lock Latches: Top and side quick-rigging mechanisms that allow a two-person stage crew to erect a complete 50-square-meter curved wall in under two hours.
• Integrated Truss Rigging and Ground Support: Dual-purpose rigging bars compatible with overhead truss clamps (hanging up to 15–20 cabinets high) and ground-stacking base beams with leveling jacks.

3. Angle Locking Architecture: Concave vs. Convex Curvature

Understanding how curved rental panels transition between concave, flat, and convex geometries is essential for staging versatility:

     [ CONCAVE / INNER CURVE ]        [ FLAT WALL ]        [ CONVEX / OUTER CURVE ]
       (Audience Inside Arc)       (Standard Backdrop)      (Audience Outside Arc)

             \       /                 |       |                  /       \
              \     /                  |       |                 /         \
            [Cabinet A]              [Cabinet A]             [Cabinet A]
             /       \                 |       |                 \         /
            / [Dial]  \                | [0°]  |                  \ [Dial]/
           /  (+15°)   \               |       |                   \(-10°)/
          [Cabinet B]                [Cabinet B]                 [Cabinet B]

1. Concave Curves (Inner Arcs: +2.5° to +15°)

• Staging Advantage: Wraps inward around the performance stage or studio floor, creating a natural focal point that envelops presenters and focuses audience attention.
• Primary Applications: Virtual production stages, broadcast news sets, theater backdrops, immersive corporate keynotes, and esports command centers.

2. Convex Curves (Outer Arcs: −2.5° to −10°)

• Staging Advantage: Bends outward toward viewing aisles, maximizing visual exposure for audiences walking past exhibit booths or round central stage rings.
• Primary Applications: 360° cylindrical arena scoreboards, central trade show pillars, circular exhibition pavilions, and circular DJ booth surrounds.

3. S-Shaped and Wave Formations

By alternating concave and convex locking settings between adjacent cabinet columns, stage designers can generate dramatic sinusoidal wave backdrops that add kinetic depth to live musical performances.

4. Technical Comparison: Curved Rental LED Panels vs. Alternative Staging Display Technologies

To evaluate why specialized curved rental LED panels deliver superior ROI for staging production compared to standard flat rental panels or flexible soft modules, examine the comparison below:

5. The “Tri-in-One” Modular Drive Engine: Redefining Staging Maintenance

During live broadcast events or concerts, an equipment failure cannot wait for complex teardowns. Leading curved rental panels feature an integrated “Tri-in-One” modular power and control unit:

      =================================================================
               “TRI-IN-ONE” MODULAR REMOVABLE CENTRAL ENGINE
      =================================================================

       +-------------------------------------------------------------+
       |   [ Industrial Switched-Mode Power Supply (SMPS) ]          |
       |   + [ High-Speed Receiving Card (A8s / NovaStar / Colorlight)|
       |   + [ Integrated Distribution Board & Safety Breakers ]      |
       +-------------------------------------------------------------+
                                      |
                     [ Tool-Free Quick-Release Latch ]
                                      |
       =================================================================
             Detaches in 10 Seconds Without Disassembling Modules

1. Tool-Free Quick Extraction: The entire electronics hub—including power supply, receiving card, and internal wiring—can be detached and swapped from the rear in less than 10 seconds without removing LED modules.
2. Independent Cable-Free Interconnects: Floating gold-plated edge connectors eliminate fragile ribbon cables and internal loose wiring harnesses, drastically reducing tour-related signal dropouts.
3. Smart Backup Data Pathways: Dual-redundant data looping ensures that if a signal line fails on one cabinet, backup data instantly routes from the opposite end of the video chain without flickering.

6. Broadcast-Grade Visual Performance for Camera and XR Virtual Production

Curved LED rental screens frequently operate directly behind live broadcast talent or within film production studios. To prevent visual distortion and video capture artifacts, panels must deliver top-tier optical specifications:

• Ultra-High Refresh Rate (≥ 3,840 Hz to 7,680 Hz): Eliminates visible black scan lines, rolling shutter bars, and flicker when captured by high-speed broadcast cameras.
• 16-Bit Grayscale Processing: Delivers smooth, banding-free color gradients across dark shadow areas and low-light concert lighting environments.
• Low Moiré Surface Finish: Optical matte masks and anti-glare face coatings minimize moiré pattern interference during close-up camera panning.
• Wide Color Gamut Support: Full compatibility with Rec.709, DCI-P3, and HDR10 visual processing for cinema-grade color reproduction.

7. B2B Procurement and Quality Inspection Checklist

Before finalizing large-scale curved rental LED inventory purchases, staging rental companies and system integrators should rigorously inspect these technical criteria:

1. Angle Lock Precision and Repeatability: Verify that the supplier provides high-precision calibrated curvature locks supporting smooth, repeatable −10° to +15° transitions with positive zero-play detents.
2. Cabinet Squareness and Planarity: Verify dimensional tolerance (≤ ±0.1 mm) to ensure that flat configurations assemble as seamless walls without mechanical distortion.
3. Corner and Edge Protection: Retractable corner drop-shields that protect delicate corner SMD diodes during transport and ground placement.
4. True Ingress Protection Rating: Certified IP65 front and rear test reports for outdoor rental series, featuring waterproof aviation-grade Neutrik power and etherCON data connectors.
5. Certified Rigging Load Calculations: Certified structural load documentation detailing maximum hanging heights (e.g., up to 20 cabinets) with safety factor ratings ≥ 5:1.
6. Flight Case Customization: High-density EVA foam-lined road cases (typically 6-in-1 or 8-in-1) with heavy-duty Penn Elcom hardware and stacking caster dishes.

8. Frequently Asked Questions (FAQ)

Q1: What is the minimum curve radius achievable with curved rental LED panels?

With standard 500 mm-wide rental cabinets supporting a maximum angle of +15° per joint, a complete 360° enclosed circle requires 24 cabinets, resulting in a circle diameter of approximately 3.82 meters (radius of approximately 1.91 meters). For tighter architectural curves, specialized soft-link flexible rental panels are recommended.

Q2: Can curved rental cabinets be seamlessly mixed with standard flat rental cabinets?

Yes. Professional curved rental cabinets share identical frame dimensions (500 × 500 mm or 500 × 1000 mm), latching systems, and module layouts with flat series panels from the same product line, enabling stage crews to interlock flat central walls with curved side wings seamlessly.

Q3: What pixel pitches are most popular for event rental curved screens?

For indoor corporate events, broadcast studios, and luxury exhibitions, P2.6 and P2.97 are the industry standards for high-resolution clarity at 2–5 meters viewing distance. For outdoor concert touring and festivals, P3.91 and P4.81 provide the optimal balance of brightness (4,500–5,500 nits) and cost efficiency.

9. Conclusion and Next Steps

Curved rental LED displays offer event producers and staging companies the ultimate blend of creative visual flexibility, fast on-site deployment, and rugged touring reliability. By choosing die-cast cabinets equipped with calibrated angle locks, modular Tri-in-One power boxes, and high-refresh broadcast drivers, AV rental houses can expand their client offerings and maximize inventory return on investment.

Contact USER SDT today to request technical drawings, curvature calculation tables, and wholesale B2B quotations for our Arc-Shaped Curved Rental LED Screen Series.
