Brand: USER
Pixel Pitch（mm）: 2.604/2.97/3.91/4.81
Pixel structure:1R1G1B
LED:SMD1415/SMD1921
Module Size(W×H×D)（mm）:250×250

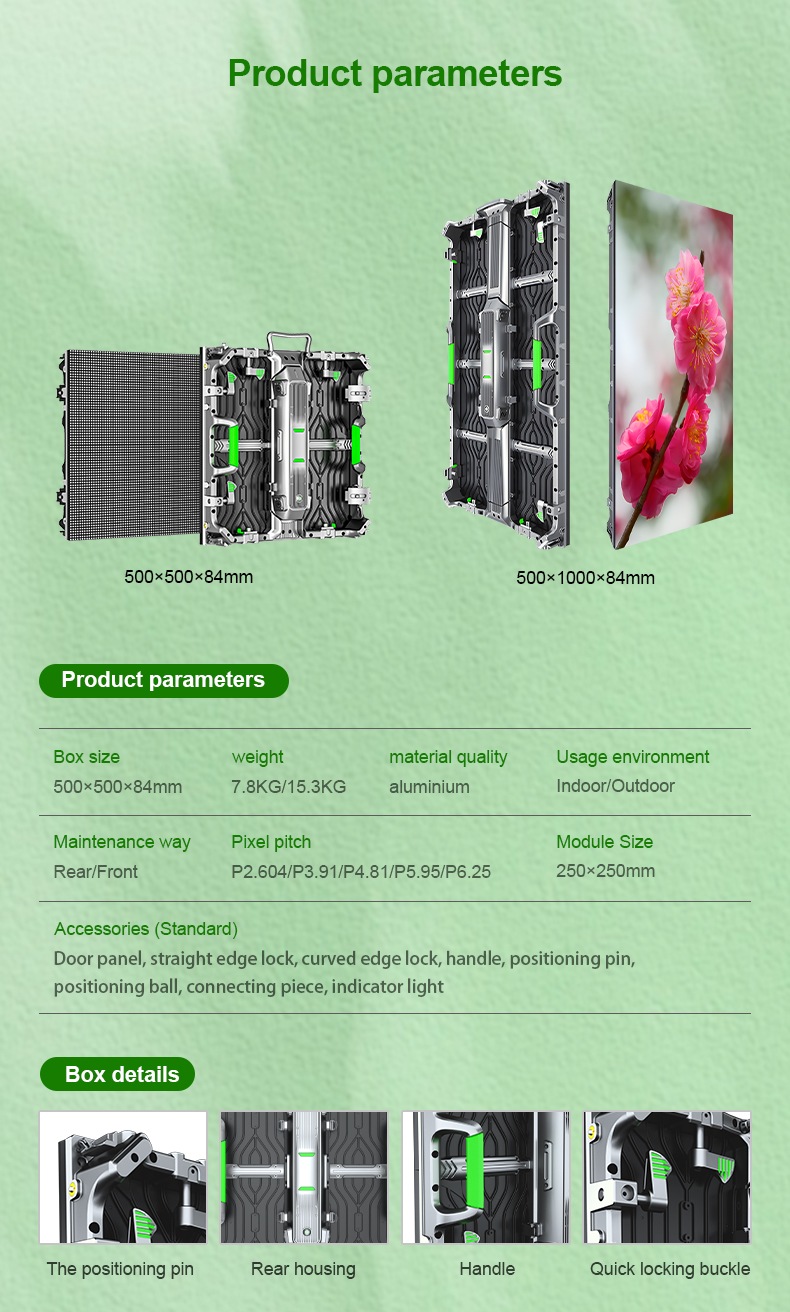

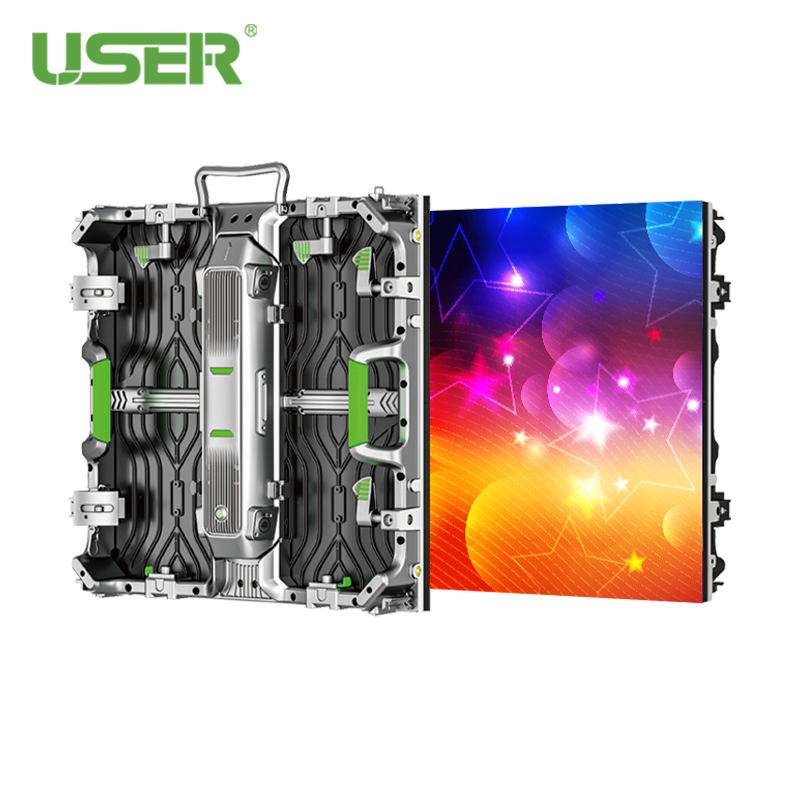

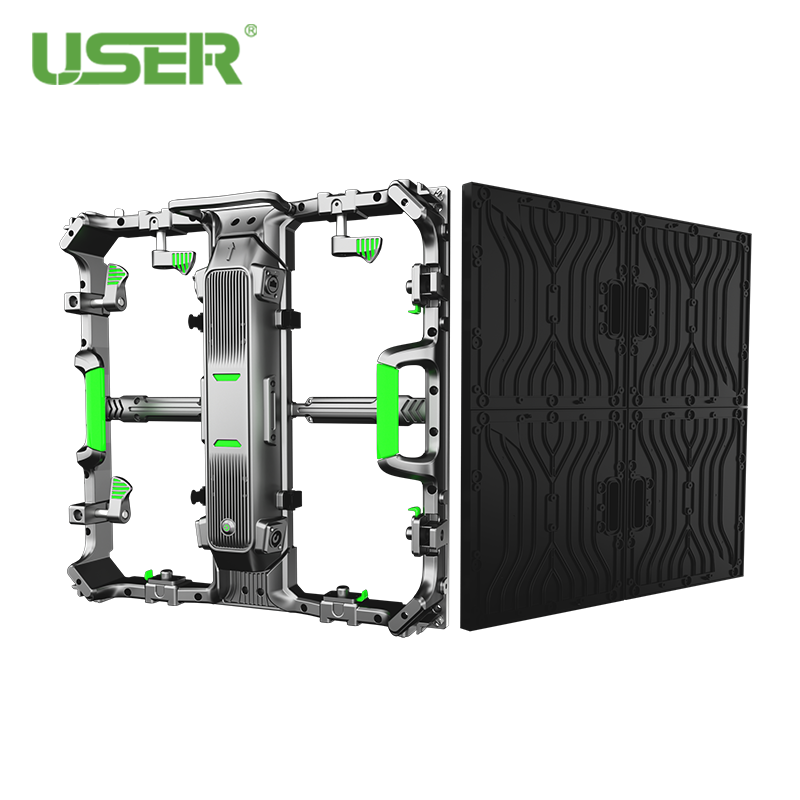

Cabinet material:Die-cast aluminum cabinet
Grayscale (Bit):16bit
Product Introduction

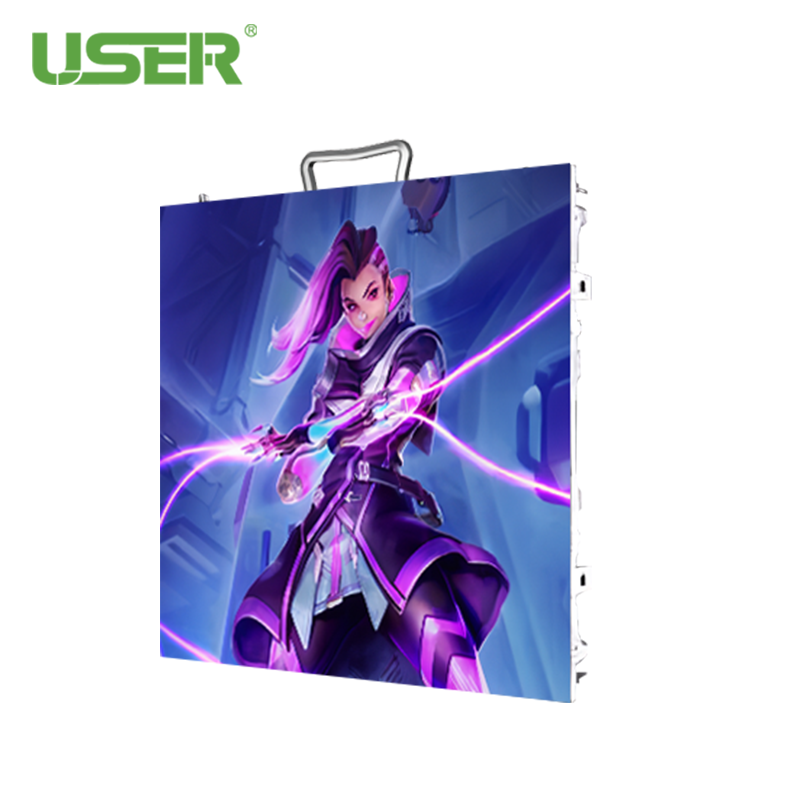

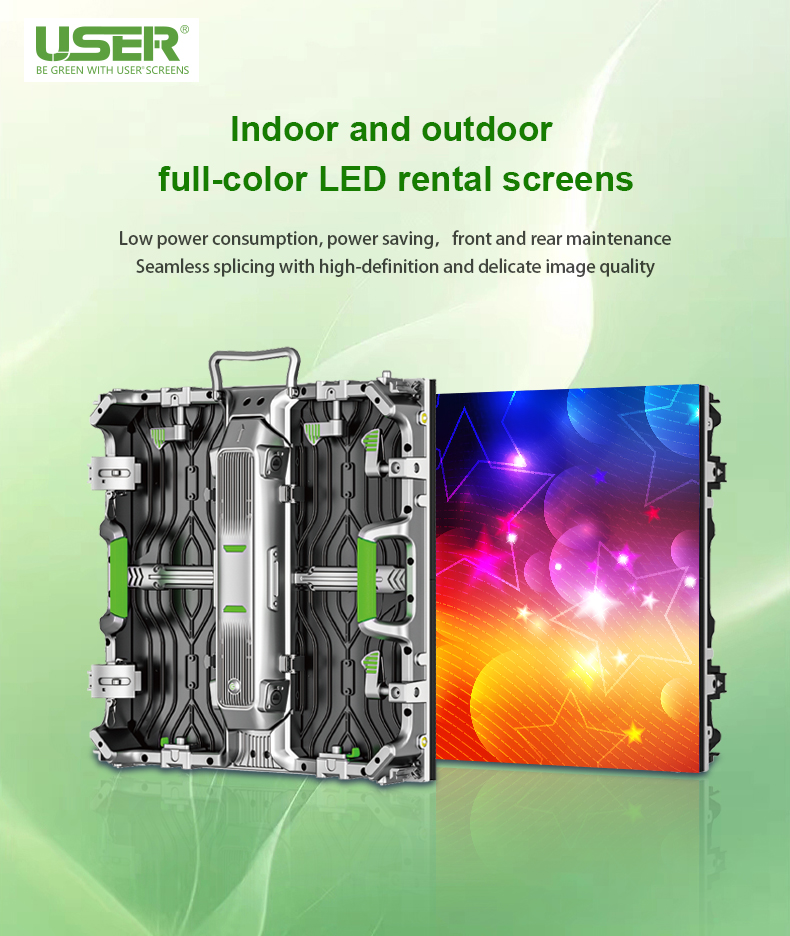

Indoor and outdoorfull-color LED rental screens
Low power consumption,power saving, front and rear maintenanceSeamless splicing with high-definition and delicate image quality.
High refresh with vivid colors Fast response speed, bright colors, smooth and stable image quality without dragging or blurring.
Wide perspective visual experience Multi angle viewing still perfectly presents high-definition image quality without distortion.

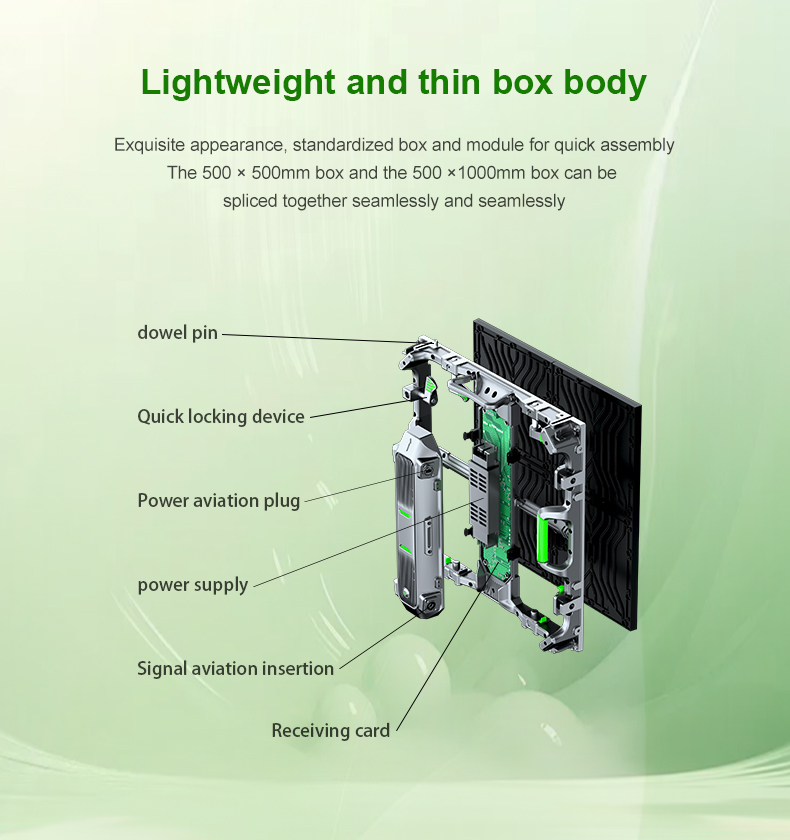

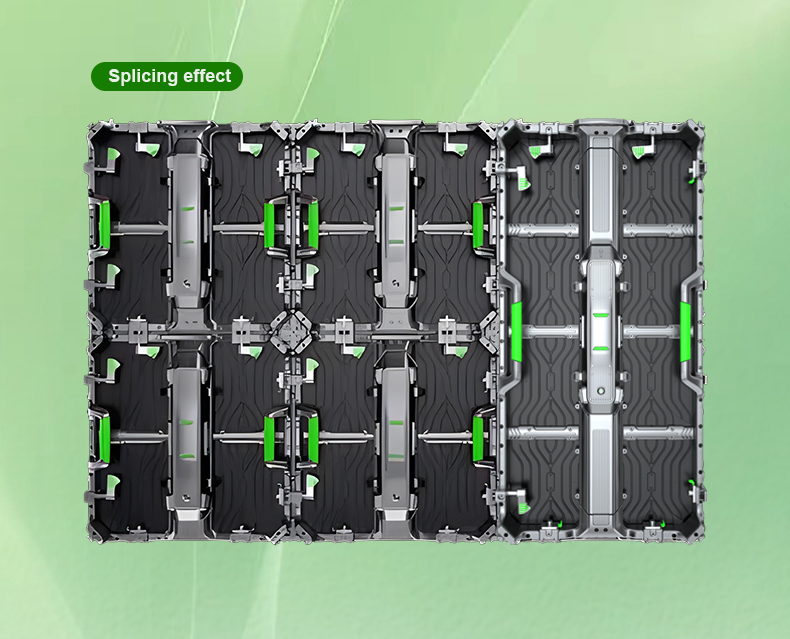

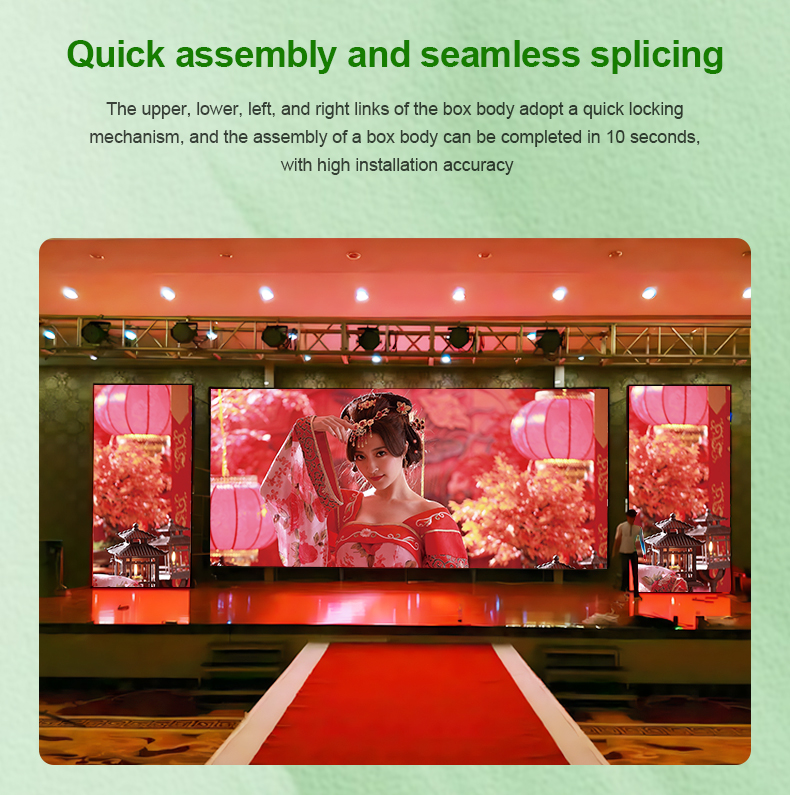

Quick assembly and seamless splicing The upper, lower, left, and right links of the box body adopt a quick lockingmechanism,and the assembly of a box body can be completed in 10 seconds,with high installation accuracy.
| Item | ZCI2.60 | ZCI2.97 | ZCI3.91 | ZCI4.81 | |||
| Technical Parameters | Pixel Pitch（mm） | 2.604 | 2.97 | 3.91 | 4.81 | ||

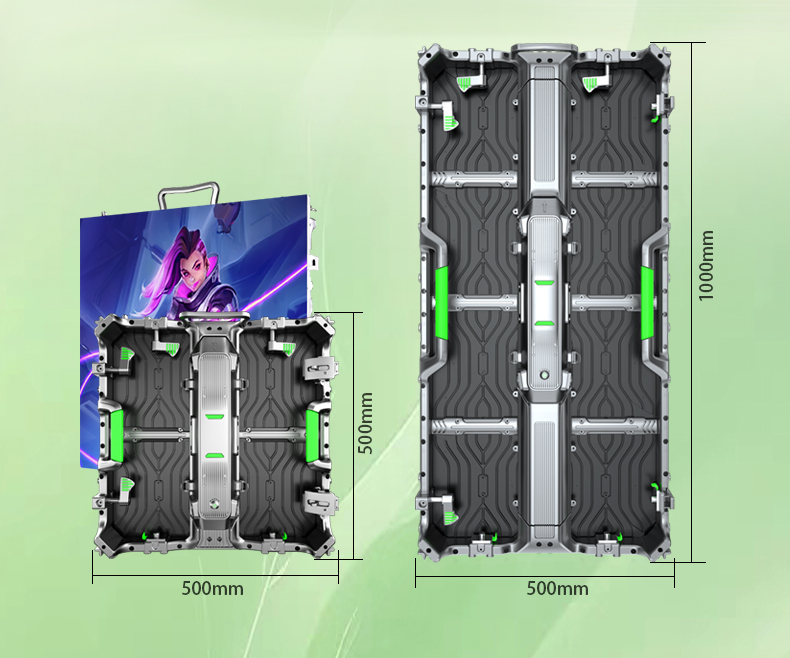

| Cabinet Siz(eW×H×D)（mm） | 500x500x89/1000x500x89 | 500x500x89/1000x500x89 | 500x500x89/1000x500x89 | 500x500x89/1000x500x89 | |||
| Price USD/unit Cabinet | 330/586 | 280/495 | 228/385 | 216/360 | |||
| Pixel structure | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | |||
| LED | SMD1415 | SMD1415 | SMD1921 | SMD1921 | |||
| Pixe l density（dot/m） | 147456 | 112896 | 65536 | 65536 | |||
| Module Size(W×H×D)（mm） | 250×250 | 250×250 | 250×250 | 250×250 | |||
| Module Resolution(W×H) dot | 96×96 | 84×84 | 64×64 | 52×52 | |||
| Cabinet material | Die-cast aluminum cabinet | Die-cast aluminum cabinet | Die-cast aluminum cabinet | Die-cast aluminum cabinet | |||
| Scan method （Scan） | 20S | 21S | 16S | 13S | |||
| Cabinet flatnes（s mm） | ≤0.10 | ||||||
| Grayscale (Bit) | 16 | ||||||
| Lamp face protection level | IP65 | ||||||
| Installation/maintenance | back installation/front maintenance | ||||||
| Optical properties | Brightness | 4000-4500 | 4000-4500 | 4000-4500 | 4000-4500 | ||
| Color temperature | 3200-12000 adjustable | ||||||
| Brightness uniformity | ≥98% | ||||||
| Chromatic uniformity | Within 0.003Cx,Cy | ||||||
| Horizontal/Vertical Viewing Angle | ≥120°≥140° | ||||||
| Contrast | ≥5000:1 | ≥5000:1 | ≥5000:1 | ≥5000:1 | |||
| Single point color correction | Yes | ||||||
| Single point brightness correction | yes | ||||||
| Electrical and Environmental Properties | Drive mode | Constant current drive | |||||
| Module maximum current DC | 8A | 8A | 8A | 8A | |||
| Module supply voltage DC | 5V | ||||||
| Receiving card (optional) | Novastar | ||||||
| Frame rate | 50/60Hz | ||||||
| Maximum refresh rate | ≥3840Hz | ||||||
| Signal interface | 500-M custom interface | ||||||
| Input voltage AC | 110—220V | ||||||
| Peak power consumption W/ ㎡ | ≤800 | ≤800 | ≤800 | ≤800 | |||
| Average power consumptionW/㎡ | ≤260 | ≤260 | ≤260 | ≤260 | |||
| Working temperature | -20℃～+80℃ | ||||||
| Working temperature | 10%～95%RH | ||||||
