Brand: USER
Pixel Pitch(mm): 2.60mm/2.97mm/3.91mm
Model: ZCO2.60/ZCO2.97/ZCO3.91
Brightness: 4000-4500nits
Lamp face protection level:IP65
Packaging method: 60000 hours
Application: Outdoor
Use: advertising publish, retail store, shopping mall
Function Features
Hight brightness, high refresh,Excellent display, creating a dream stage.
Support front and rear maintenance achieve easy and time -saving operation.

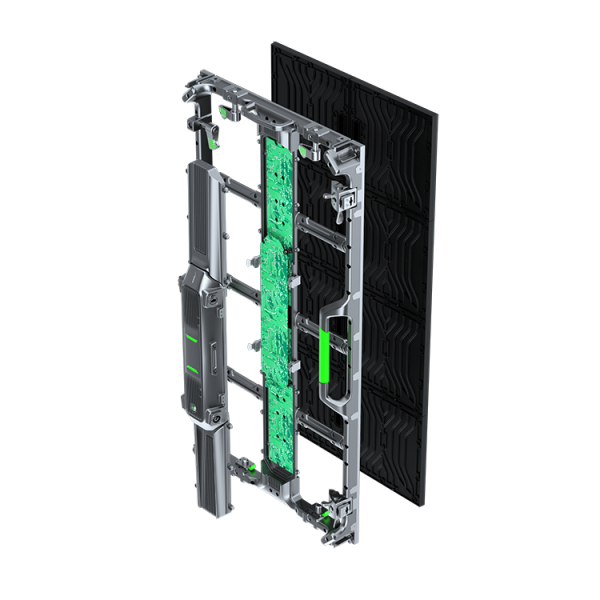

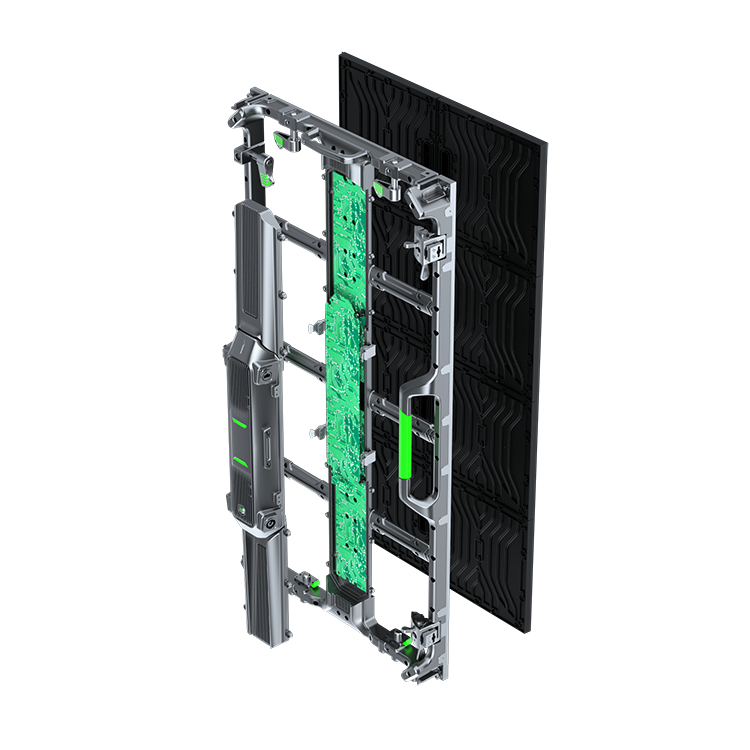

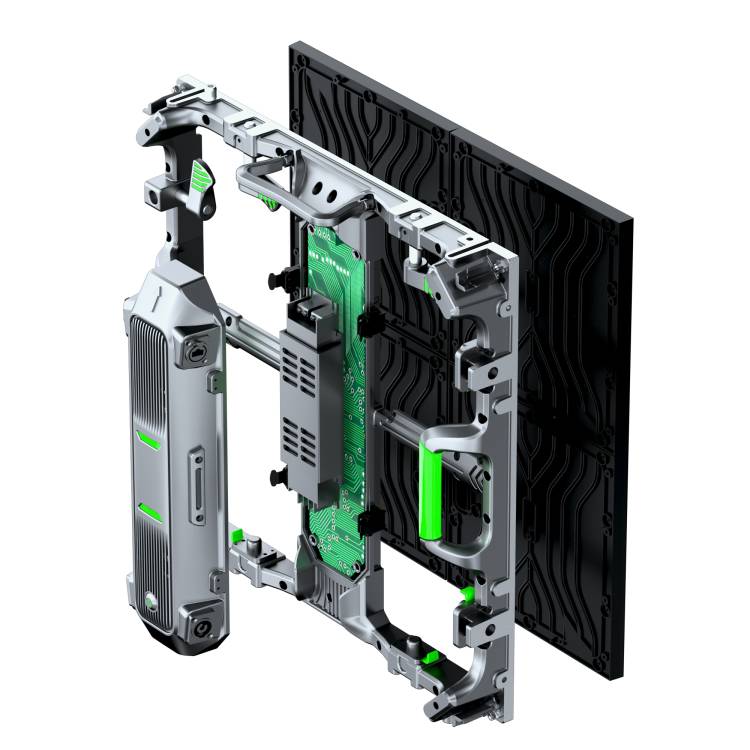

Modular design of cabinet, module and power supply box ensures 5S quick installation.
Optional arc lock design easily completes multiple curved seamless splicing.
Excellent heat dissipation performance ensures stable use in hard environment.
Slim design and lightweight, saving transportation and installation costs.

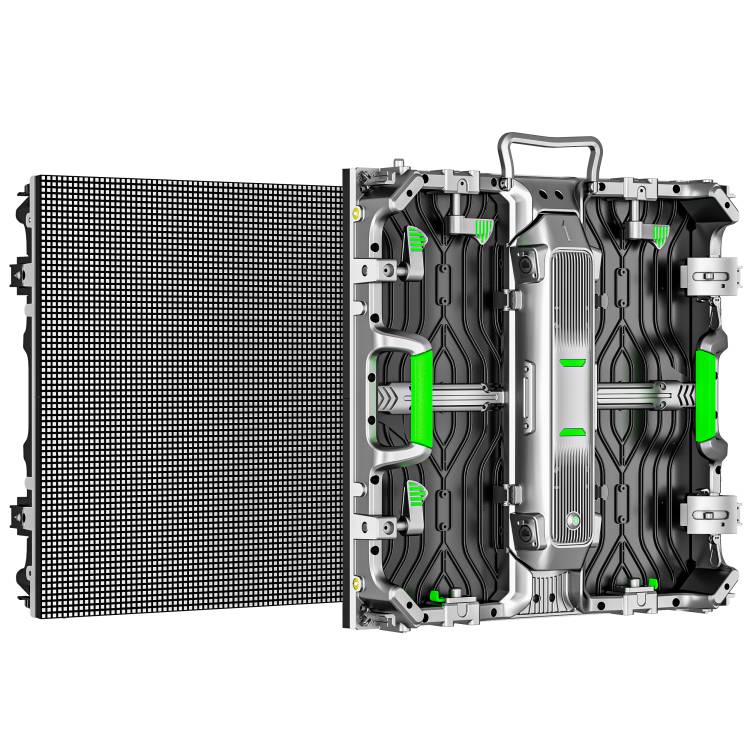

Excellent sharp colors rendering series, cabinet sizes: 500x500mm, 500x1000mm, using pure black SMD, famous brand driving IC, 3840Hz refresh rate, splicing inner and outer arch is adjustable, compact & humanized design ensure easy assembly and dismantle, cabinet surface using anodized coating technology & anti-oxidation treatment, which is resistant to collision and friction and is suitable for multiple installations and removals during the rental process.
Wide Display Angle
Full RGB color produce vivid pictures.178°super wide horizontal and verticalviewing allow for maximum
audience engagement in short viewing distances.

High Refresh Rate
A high refresh rate of 3,840Hz assures the smooth playback of content. The flicker-free image prevents
the black bars that occur from video shooting, ensure the clarity smoothness of every frame of
the picture, providing the best visual effect.

Ultra Slim Small Pixel Pitch LED Wall Application
Ultra high resolution Fine-pixel LED Wall widely reoognized as the current best media solution to deliver the uiltimate
visual performance for traditional market segments like monitor roomcontrol room, boardroom, and TV studio. The market
share of fine pitch LED display in these segments is increasing fastbecause of these great features.

| Item | P2.604 | P2.976 | P3.91 | P4.81 |
| Pixel pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Module size | 250×250mm | |||
| Module resolution | 96×96 | 84×84 | 64×64 | 52×52 |
| Physical density | 147456 dots/㎡ | 112896 dots/㎡ | 65536 dots/㎡ | 43264 dots/㎡ |
| Cabinet resolution pixel | 192×192 | 168×168 | 128×128 | 104×104 |
| Cabinet dimension | 500×500/500×1000mm | |||
| LED type | SMD1415 | SMD1921 | SMD2727 | |
| Viewing angle | H:160°;V:160° | |||
| Refresh rate | 3840/7680Hz | |||
| Brightness | ≥4000-4500cd/㎡ | |||
| Gray Scale | ≥12-16bit | |||
| Input voltage | AC:110V-240V、50-60Hz | |||
| Average power consumption | 240-720w/㎡ | |||
| IP rating | IP65/67 | |||
| Cabinet Material | Die-casting aluminum Cabinet | |||


Brand: USER
Name: Arc-shaped rental screen LED
Adjustment: Curvature
Rated: IP65
Viewing Angle: Wide
Gray Scale: 16-bit
Waterproof series:IP65

Brand: USER
Name: Soft connection type Rental LED Display

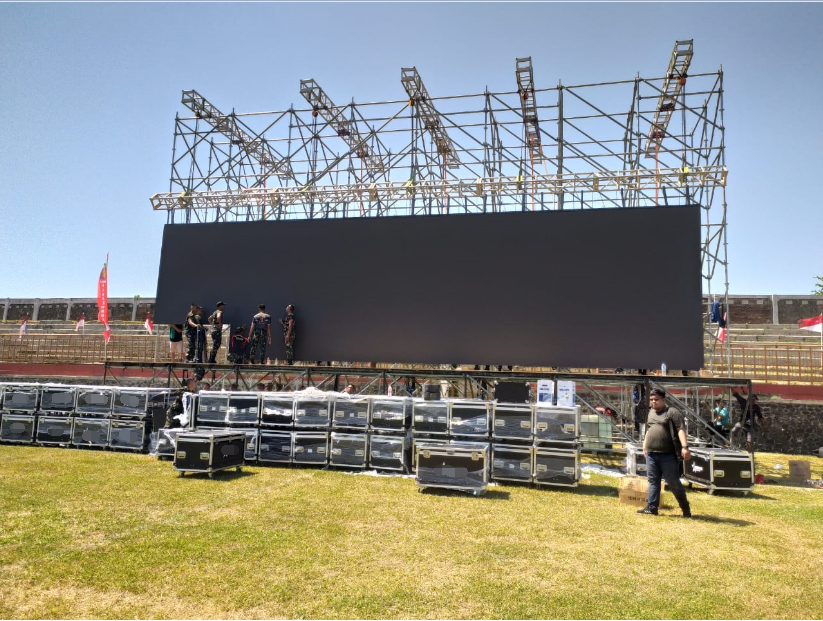

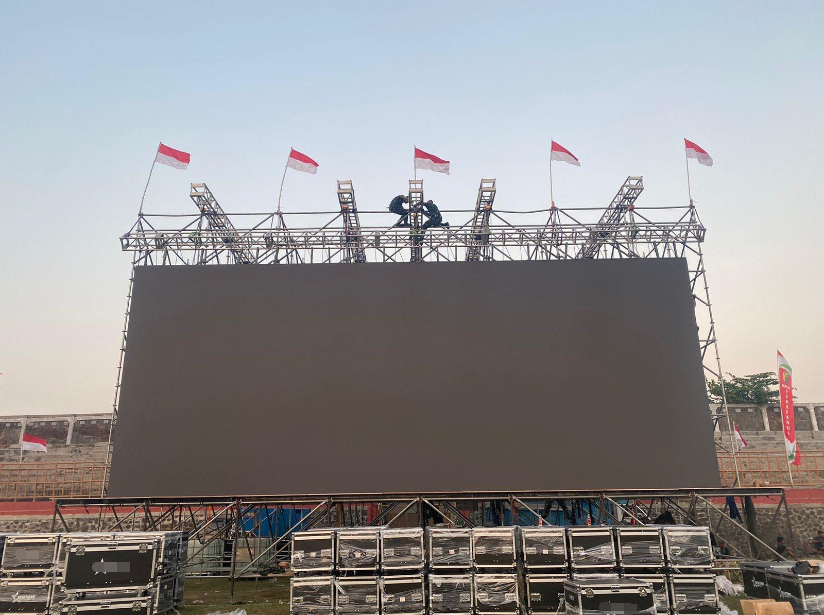

Structure Solution:Hanging Truss Standing Structure
Power Solution:Mobile PowerDistribution Box.
Waterproof series:IP65 waterproof and dust proof,suitable for both indoor and outdoor use

Brand: USER
Pixel Pitch(mm): 2.604/2.97/3.91/4.81
Pixel structure:1R1G1B
LED:SMD1415/SMD1921
Module Size(W×H×D)(mm):250×250
Cabinet material:Die-cast aluminum cabinet

Brand: USER
Pixel Pitch(mm): 2.60mm/2.97mm/3.91mm
Module size: 250×250mm
Cabinet dimension: 500×500/500×1000mm
Viewing angle:H:140°;V:160°
Refresh rate: 3840/7680Hz
Application: Indoor
