P1.25 P1.53 P1.86 P2.5 Fine Pixel Pitch Hub Board Hard Connection LED Display

Brand name:USER

Pixel Pitch（mm）: 1.25mm/1.53mm/1.86mm/2.5mm

Model :K1.25/K1.53/K1.86/K2.5

IP Rating:IP40

White balance brightness：500-800cd/m²

Resolution:3840Hz

Lifespan (hours):60000(H)

Application:Indoor

Use:advertising publish, retail store, shopping mall

Function Features

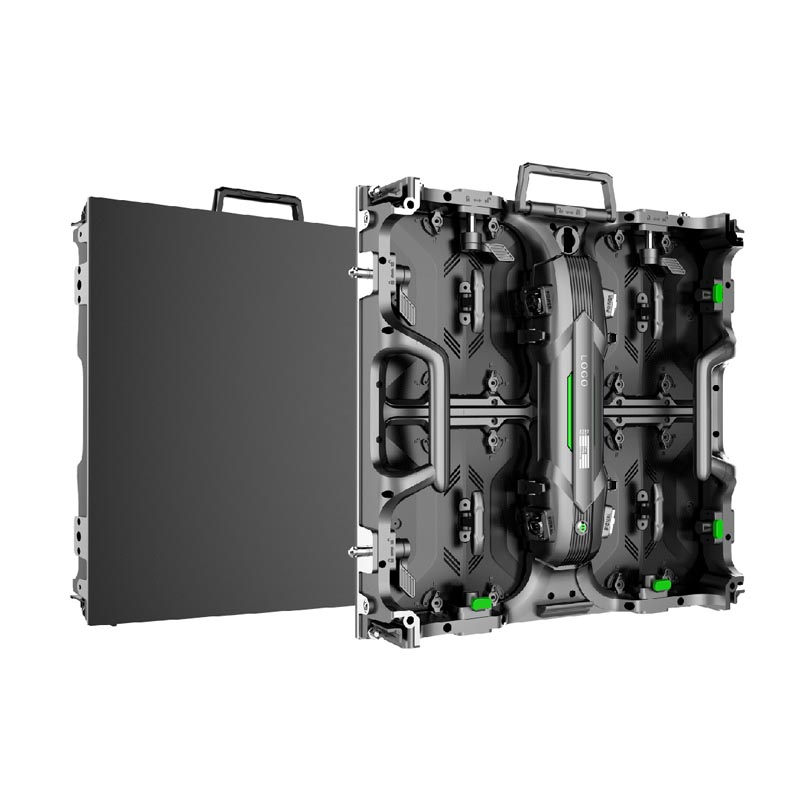

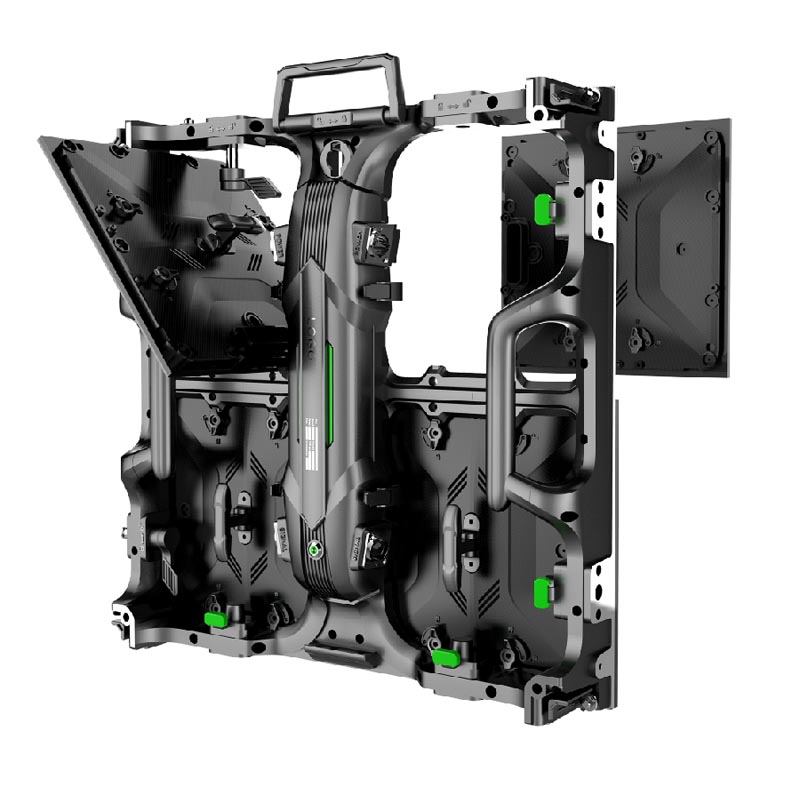

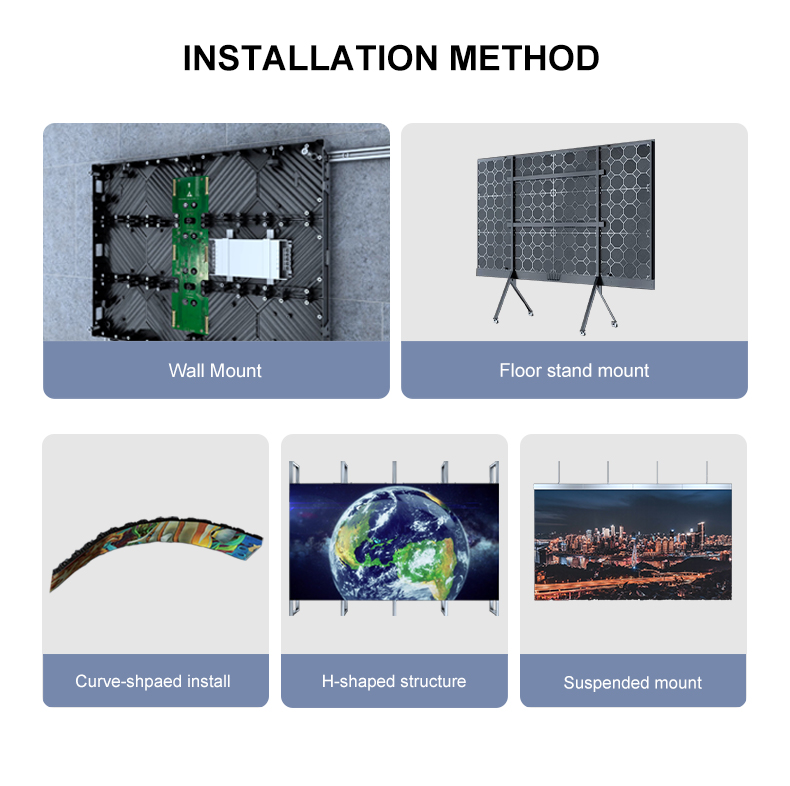

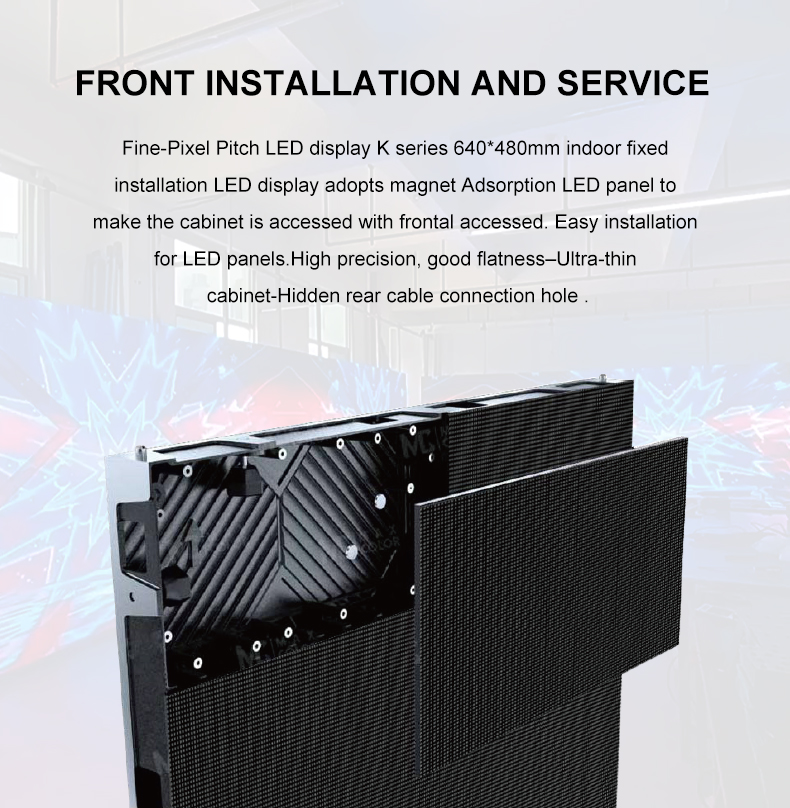

Front Installation and Service

Modules for ease of installation and service. Front Maintenance accessible, easy to affix to most wall surfaces.

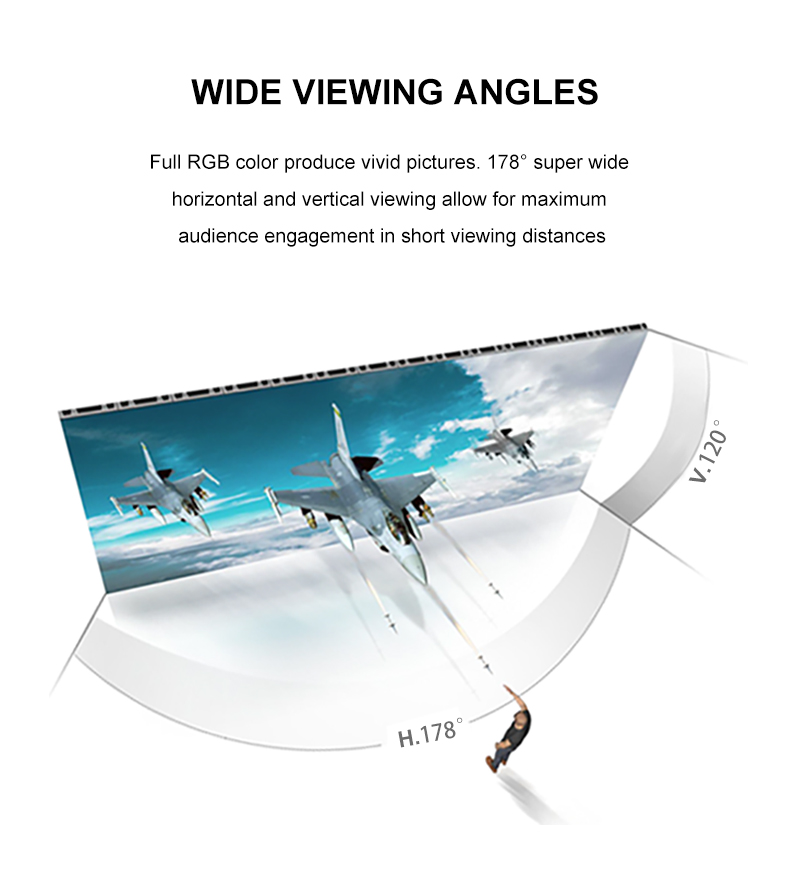

Wide Display Angle

Full RGB color produce vivid pictures.178°super wide horizontal and verticalviewing allow for maximum audience engagement in short viewing distances.

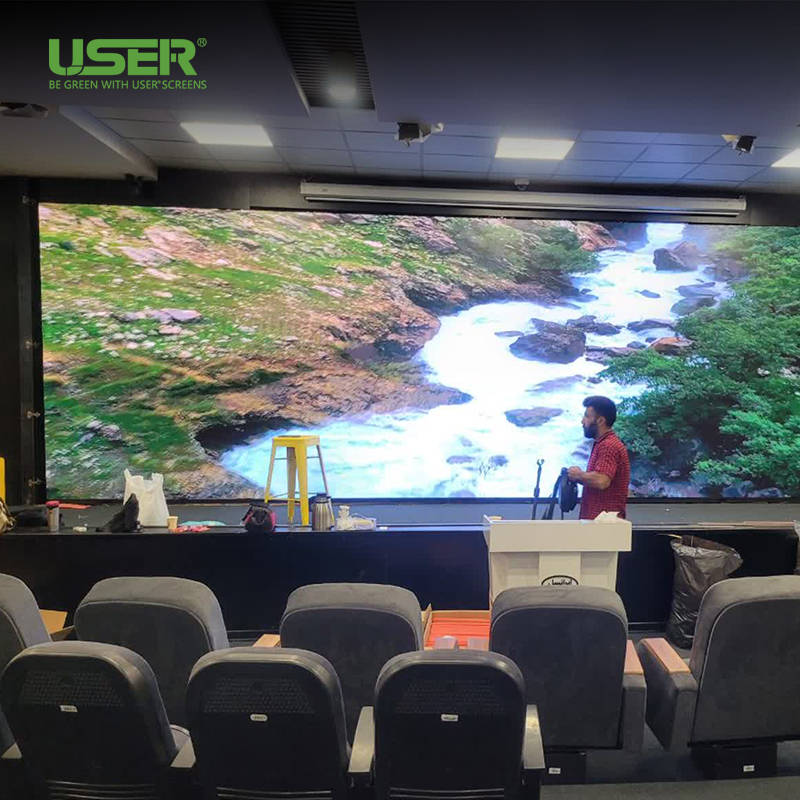

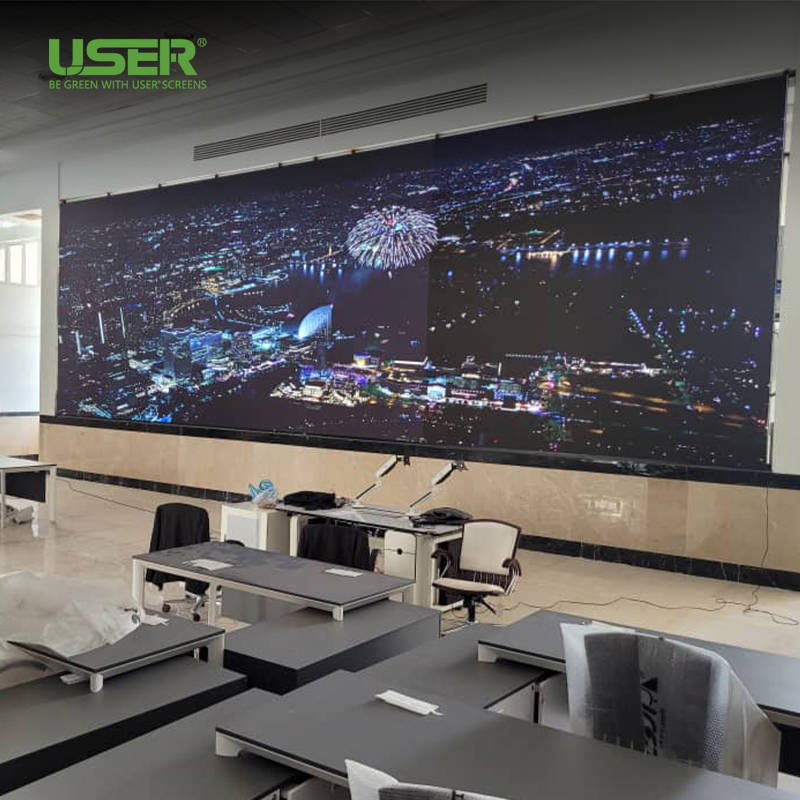

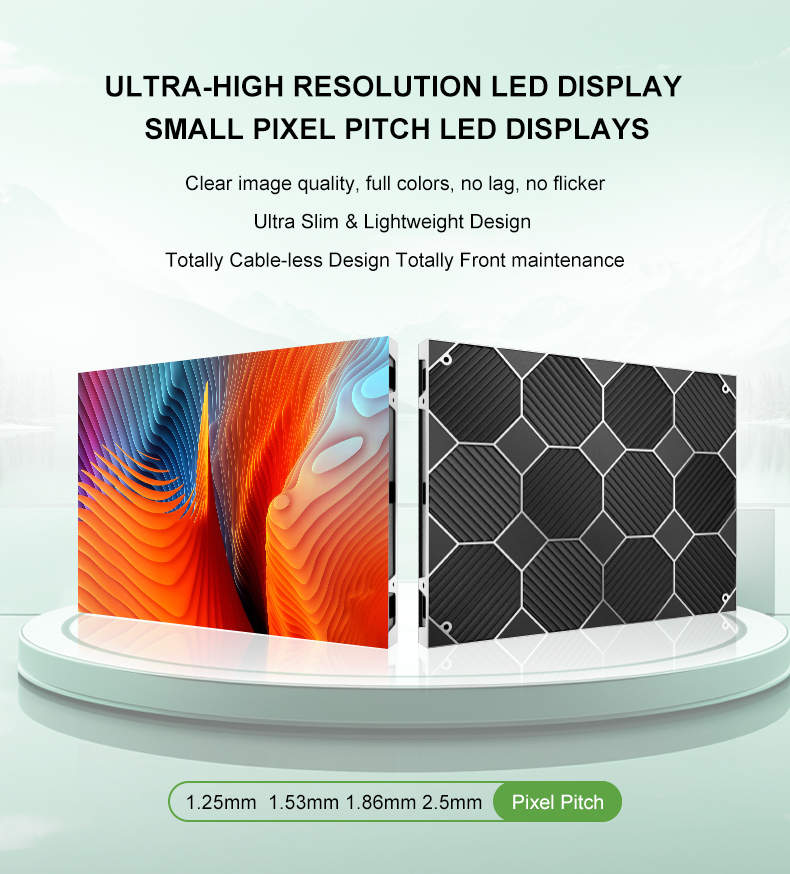

Ultra Slim Small Pixel Pitch LED Wall Application

Ultra high resolution Fine-pixel LED Wall widely reoognized as the current best media solution to deliver the uiltimate visual performance for traditional market segments like monitor oomcontrol room, boardroom, and TV studio. The market share of fine pitch LED display in these segments is increasing fastbecause of these great features.

Item	KP1.25	KP1.53	KP1.86	KP2.5
Pixel pitch	1.25mm	1.53mm	1.86mm	2.5mm

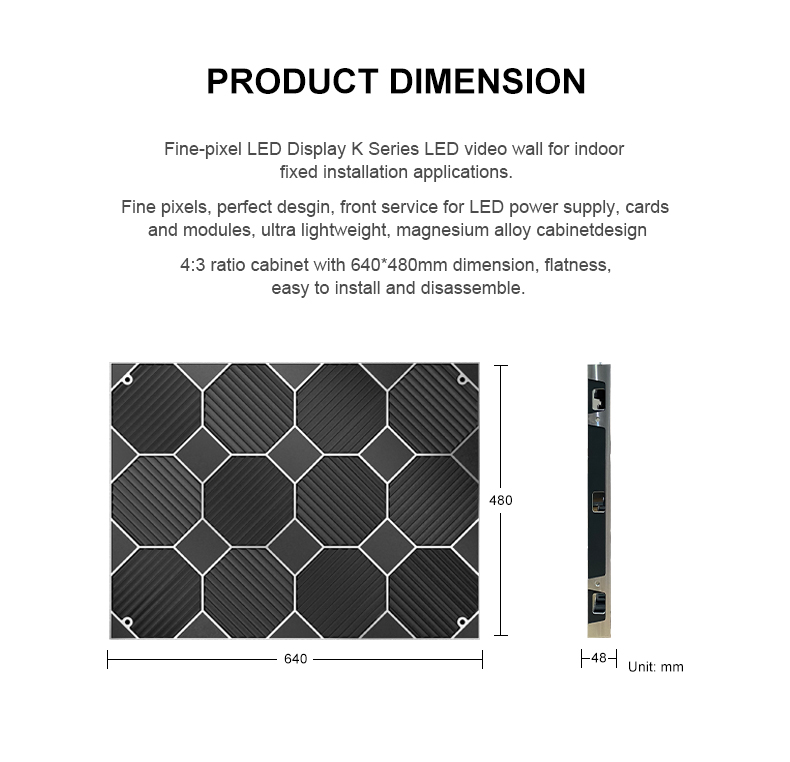

Module size	320×160mm
Module resolution	256×128	208×104	172×86	128×64
Physical density	640000 dots/㎡	422500 dots/㎡	288906 dots/㎡	160000 dots/㎡
Cabinet resolution pixel	512×384	416×312	344×258	256×192
LED type	SMD1010	SMD1212	SMD1515	SMD2020
Best viewing angle	H:160°；V:160°
Refresh rate	≥3840Hz
Brightness	≤800cd/㎡
Gray Scale	≥14bit
Input voltage	AC:110V-240V\50-60Hz
Average power consumption	165-500w/㎡
IP rating	IP40
Maintenance methods	Front maintenance
