Brand: USER
Module size: 320*160mm
Brightness: 500-600cd/m2
Refresh rate: 3840HZ
Viewing angle: 140°/140°
Gray Scale (Bit): 14bit
Color temperature: 3200-12000 adjustable
Product Introduction

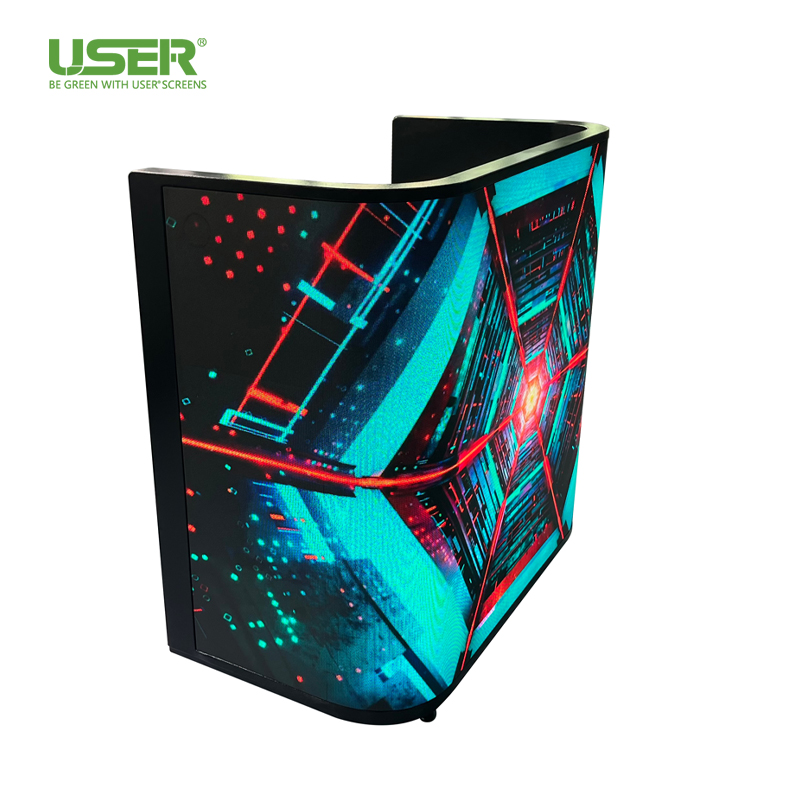

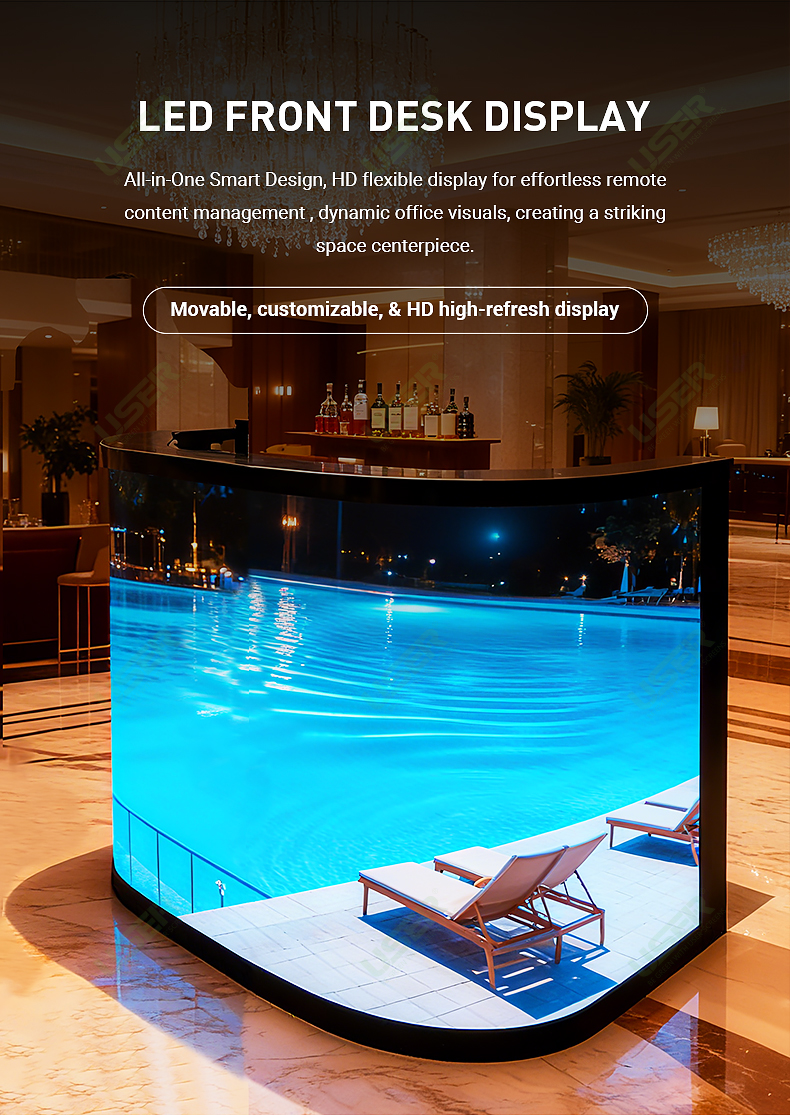

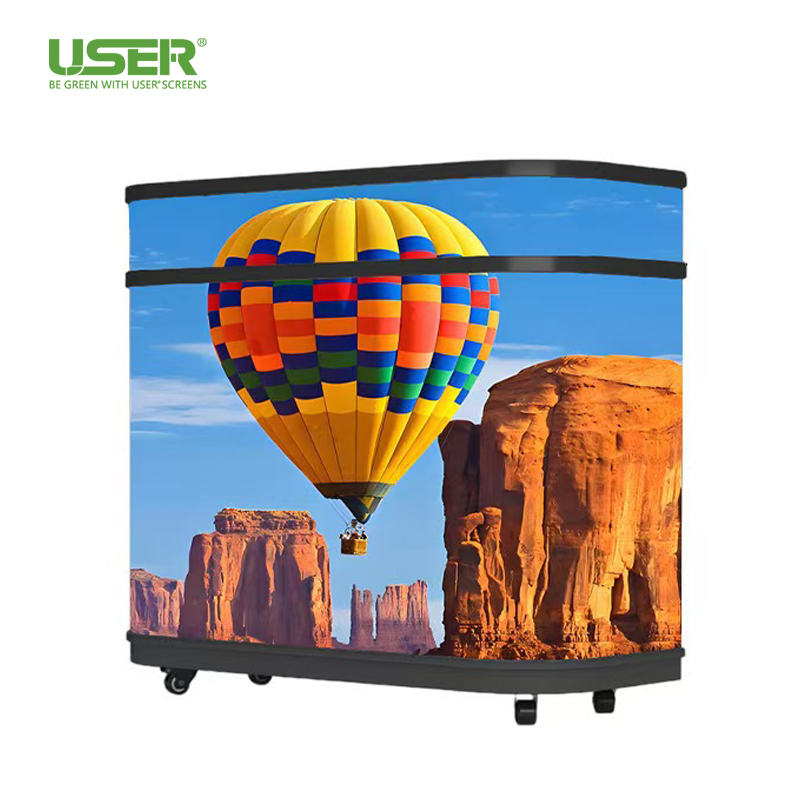

LED FRONT DESK DISPLAY

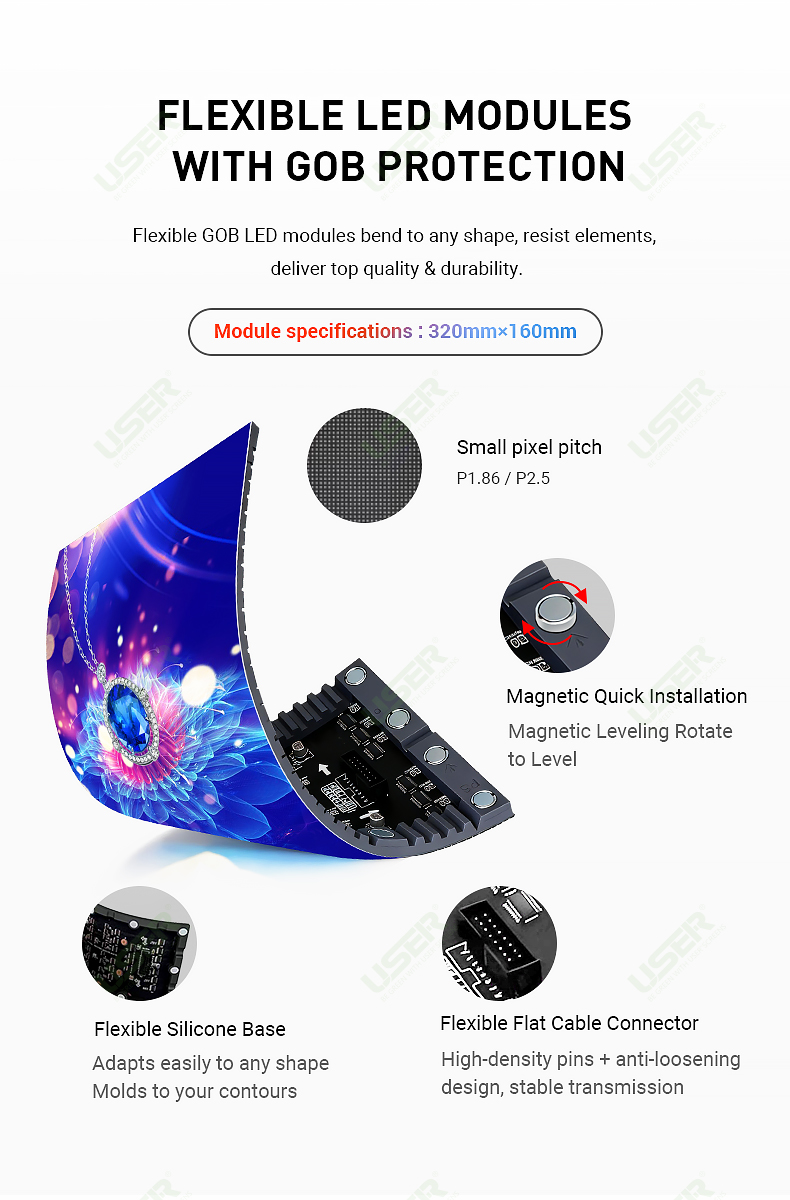

All-in-One Smart Design, HD flexible display for effortless remote content management , dynamic office visuals, creating a strikingspace centerpiece.

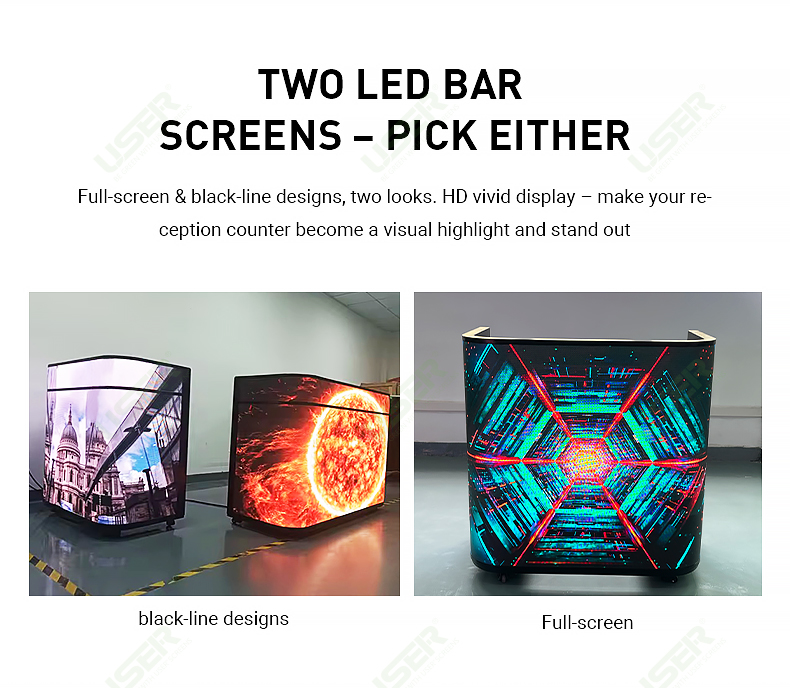

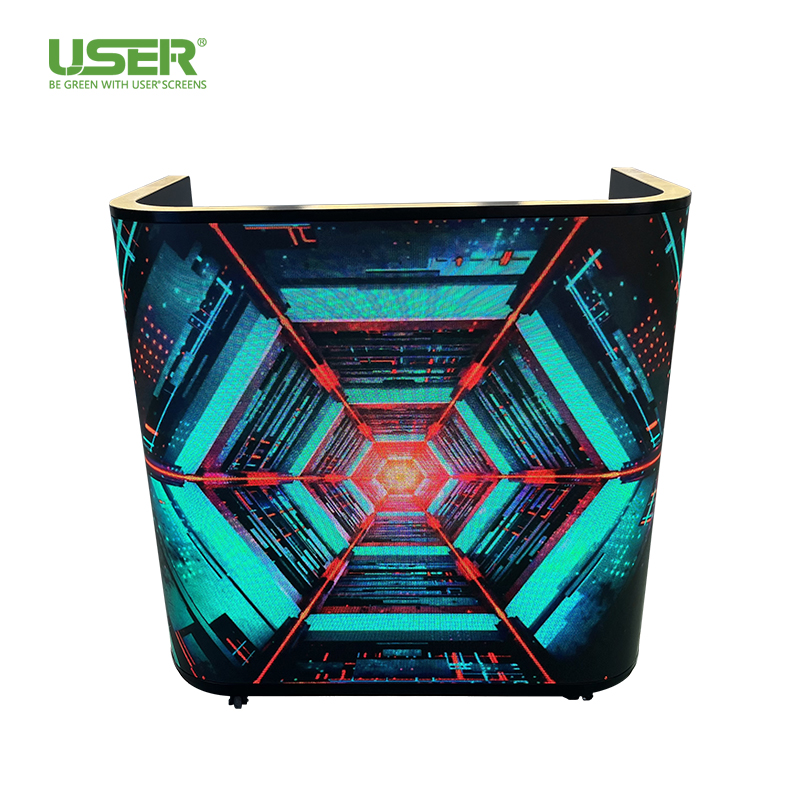

Full-screen & black-line designs, two looks. HD vivid display – make your reception counter become a visual highlight and stand out

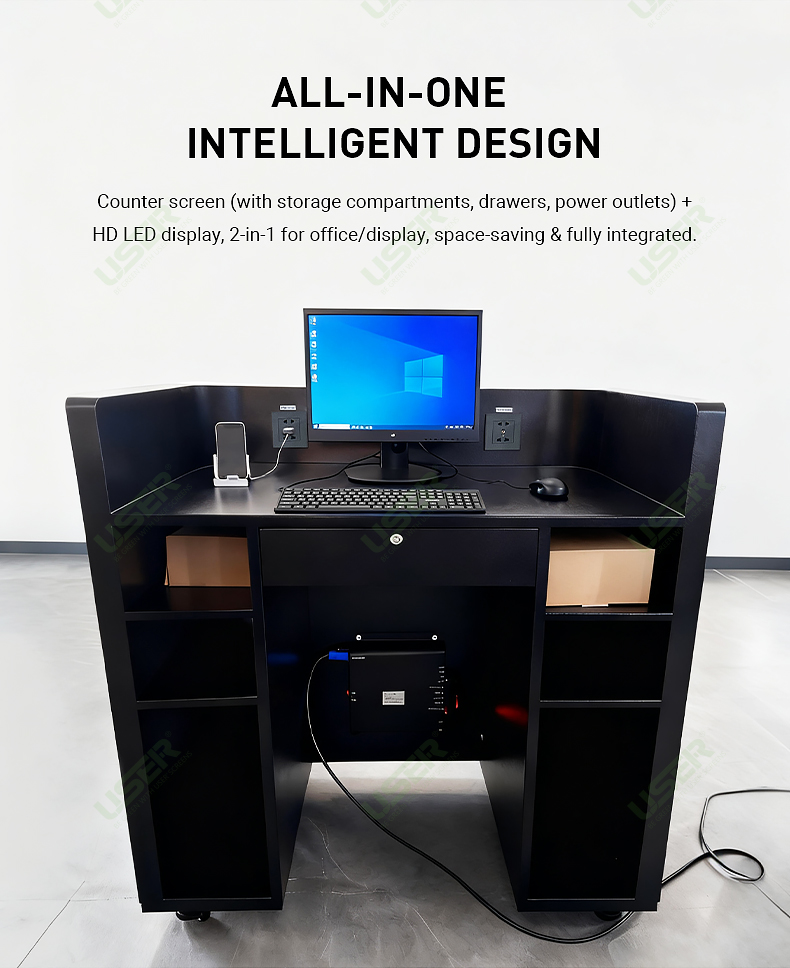

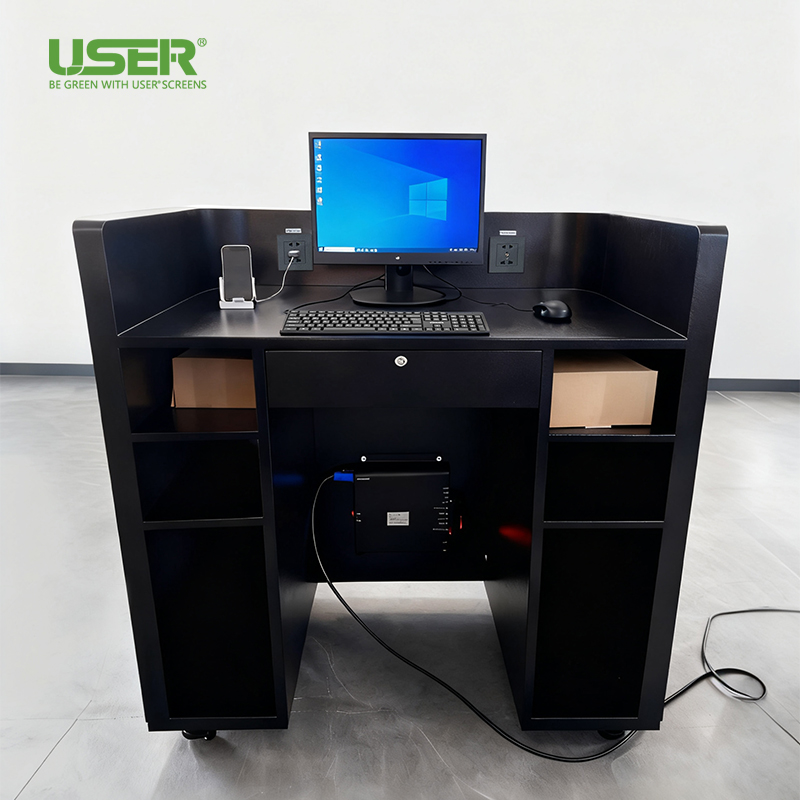

Counter screen (with storage compartments, drawers, power outlets) + HD LED display, 2-in-1 for office/display, space-saving & fully integrated

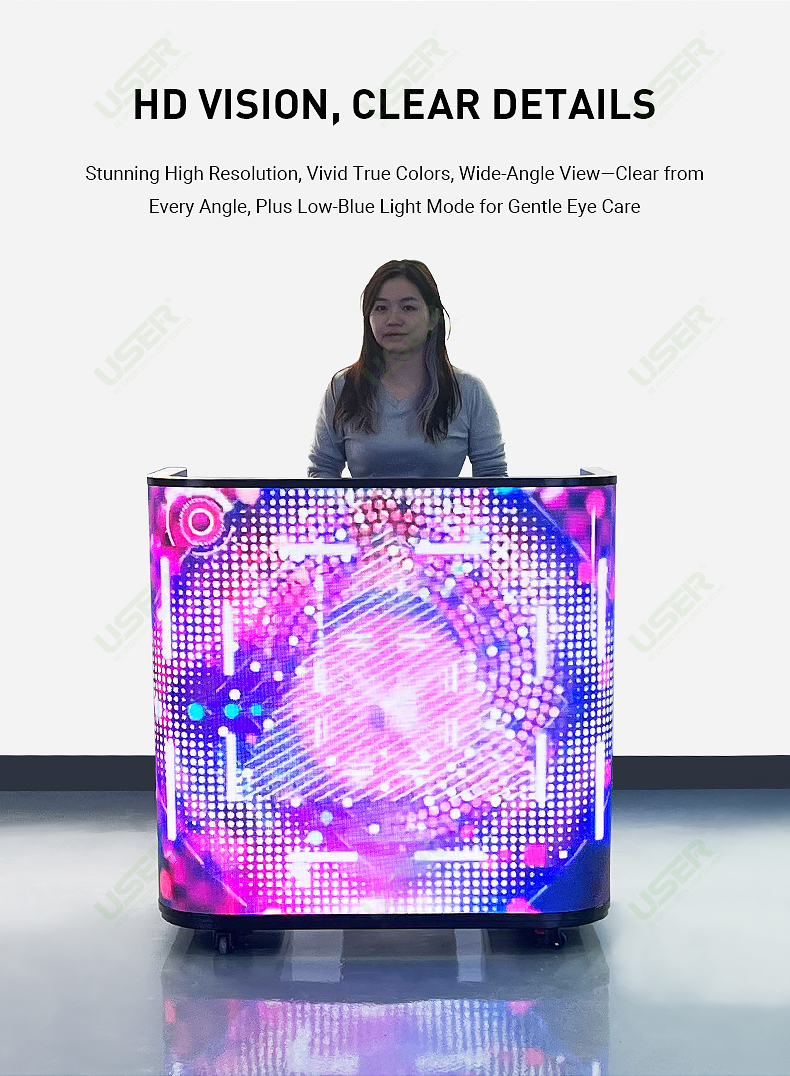

Stunning High Resolution, Vivid True Colors, Wide-Angle View-Clear from Every Angle, Plus Low-Blue Light Mode for Gentle Eye Care

| Display Specification | |||||||||
| Module size | 320*160mm | ||||||||
| Pixel pitch | 1.86mm | 2.5mm | |||||||
| Display area | 2560*960mm | 1065*960mm | 2560*960mm | 1065*960mm | |||||
| Resolution | 1376*516 | 1032*516 | 1024*384 | 768*384 | |||||
| Performance Parameters | |||||||||
| Brightness | 500-600cd/m2 | ||||||||
| Refresh rate | 3840HZ | ||||||||
| Viewing angle | 140°/140° | ||||||||
| Contrast ratio | 5000∶1 | ||||||||
| Gray Scale (Bit) | 14bit | ||||||||
| Color temperature | 3200-12000 adjustable | ||||||||
| Controller | Novastar AD20 | ||||||||
| Usage Parameters | |||||||||
| Input Voltage | AC110~220V,47~63Hz | ||||||||
| IP rating(Front/Rear) | IP43 | ||||||||
| Lifespan | ≥100,000 hours | ||||||||
| Maximum power consumption | <=1050W | ||||||||
| Average power consumption | <=400W | ||||||||
| Temperature-operating | -20℃– 70℃ | ||||||||
| Humidity-operating | 10%-95%RH | ||||||||
| Control way | USB /Phone/iPad/PC | ||||||||
| Maintenance method | Front maintenance | ||||||||
| Physical Dimensions | |||||||||
| Overall dimensions | 1675mm (L) × 1080mm (H) × 585mm (W) | 1065mm (L) × 1080mm (H) × 585mm (W) | |||||||
| Cabinet material | iron | ||||||||
| Free Spare Parts | |||||||||
| LED module | 2 pieces | ||||||||
| Power supply | 1 piece | ||||||||
| Receiving card | 1 piece | ||||||||
| Maintenance suction tool | 1 piece | ||||||||
