Brand: USER
Application: Outdoor
Image Quality: 4K ultra HD
Screen: 178° Wide Viewing Angle
Waterproof rating:IP65 Waterproof
Pixel Pitch: P1.24/Pl.48/P1.86/P2 & More Options
Integratedprotective Module: GOB full potting sealing resists
Body of the aircraft: All-aluminum body with hydraulic front opening for single/dualmodels.

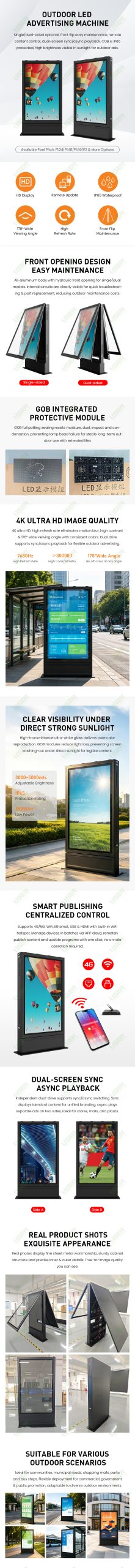

Product Introduction

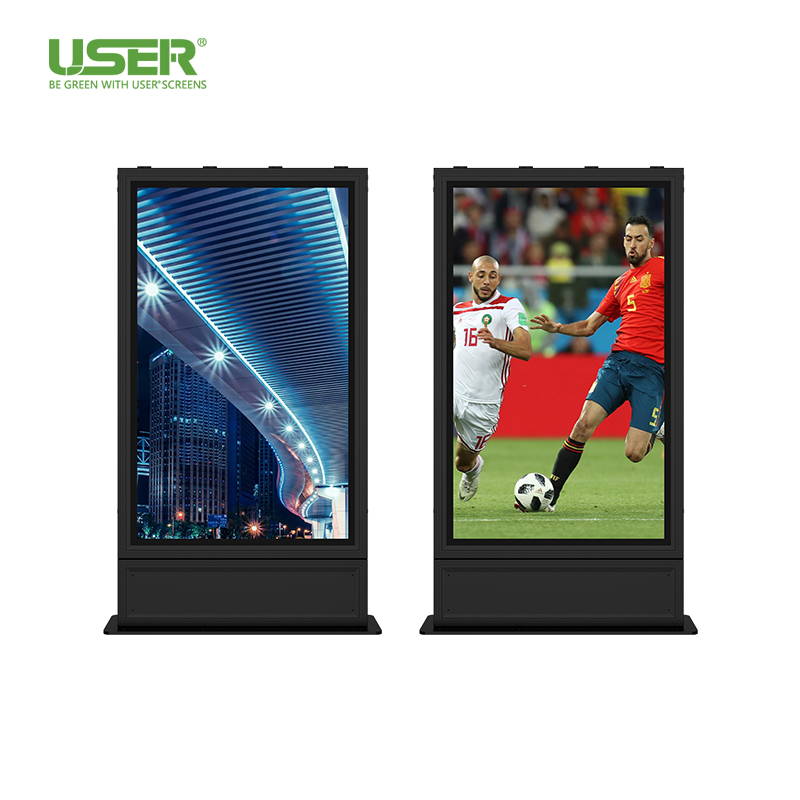

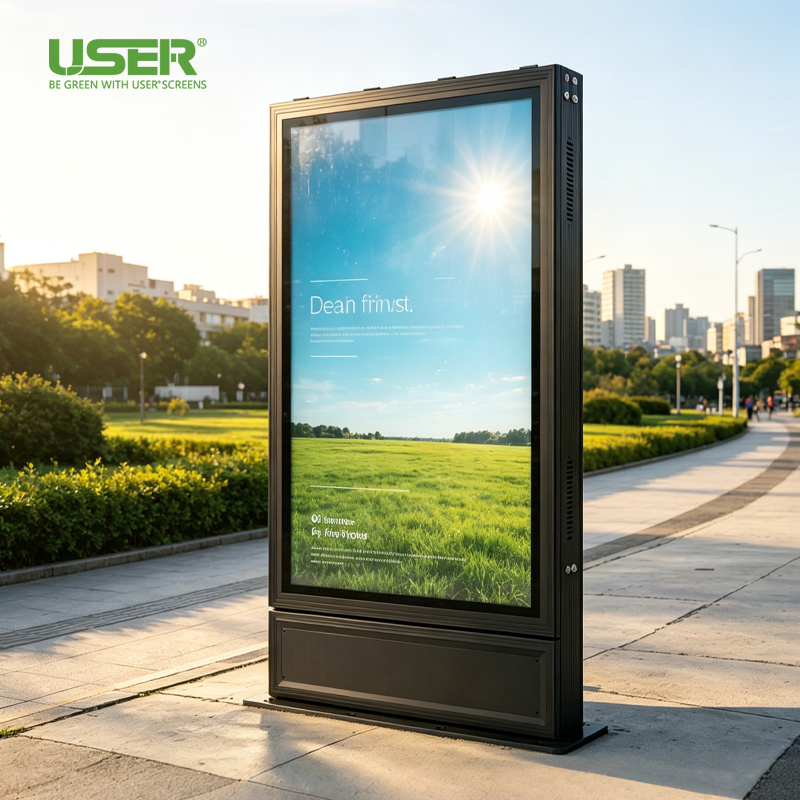

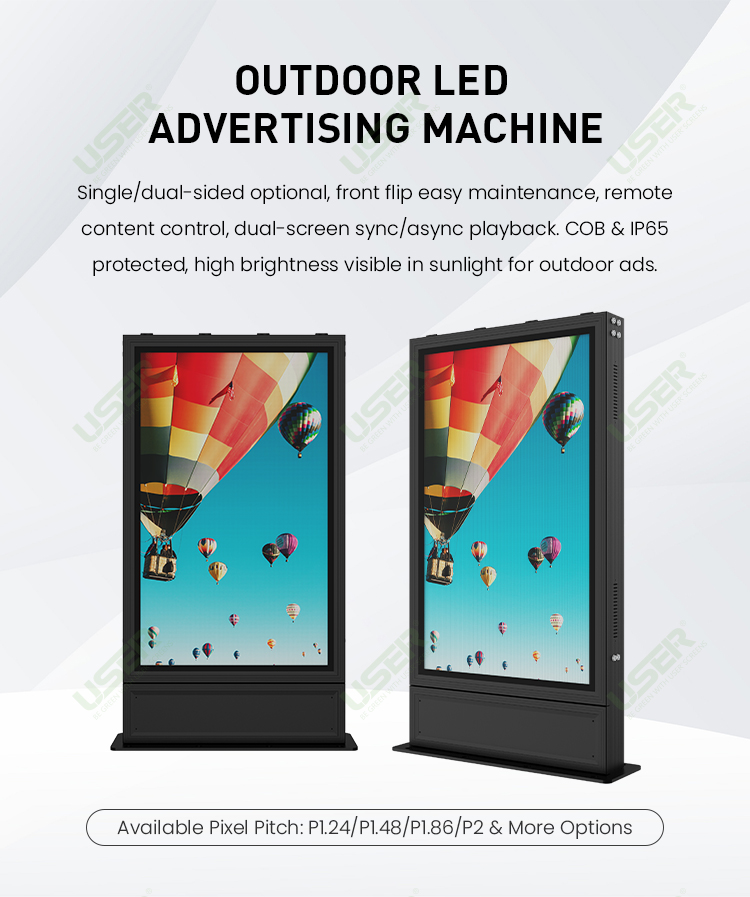

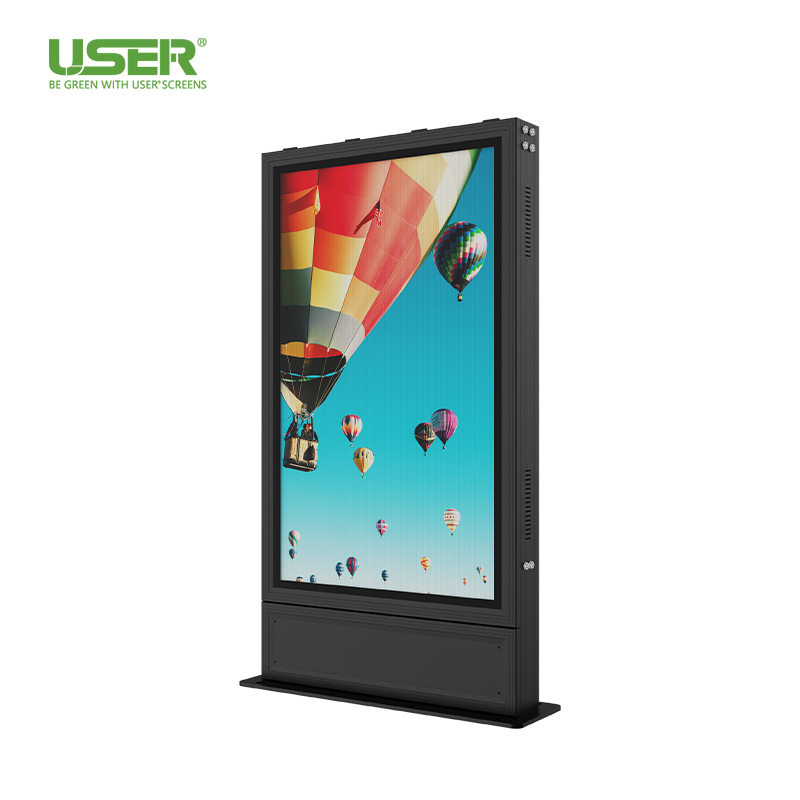

OUTDOOR LEDADVERTISING MACHINE
Single/dual-sided optional, front flip easy maintenance, remote content control, dual-screen sync/async playback. COB & IP65protected, high brightness visible in sunlight for outdoor ads.

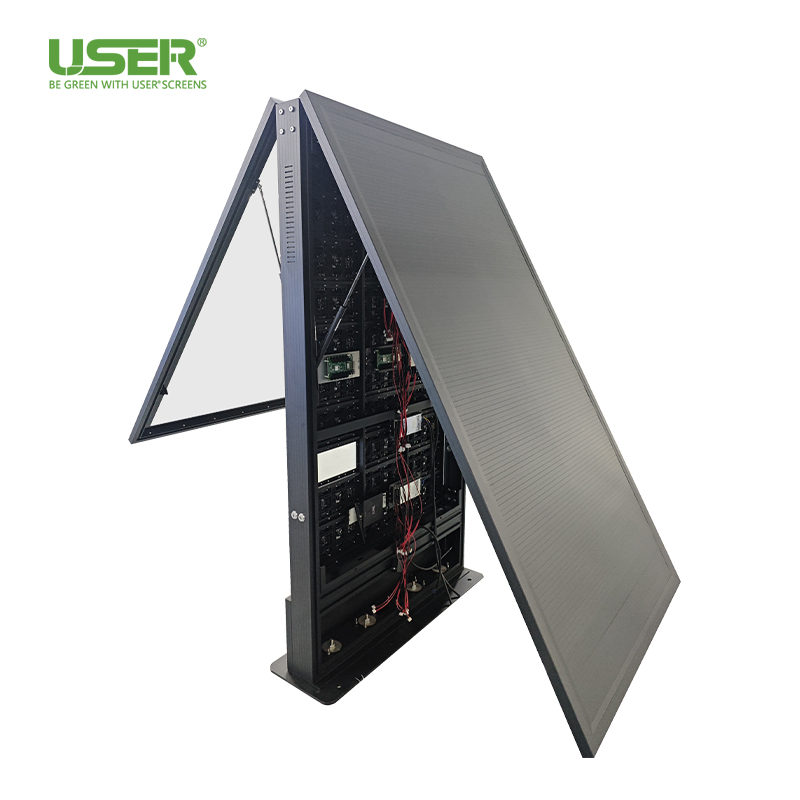

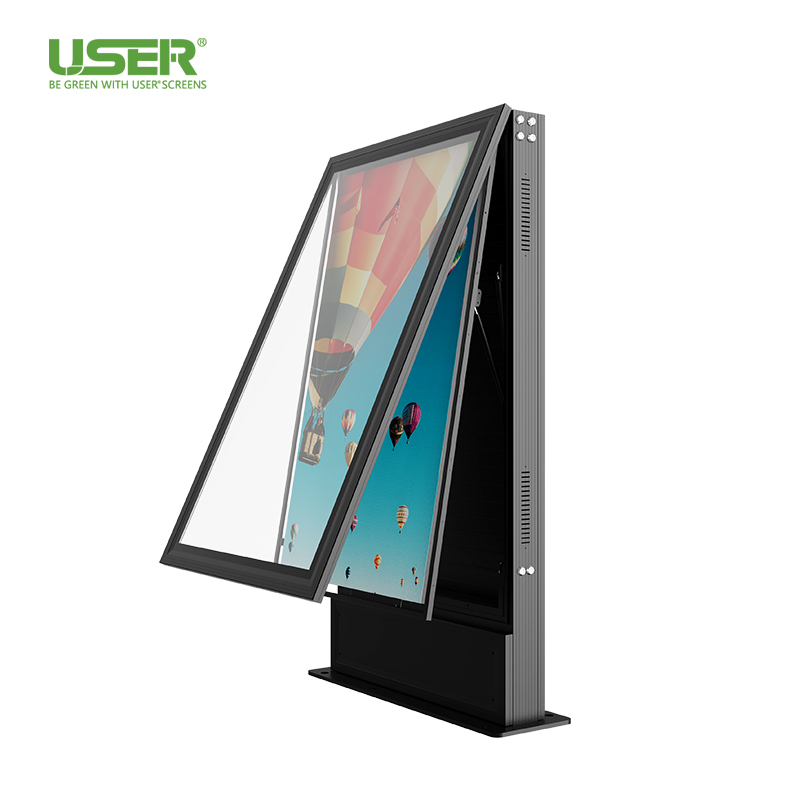

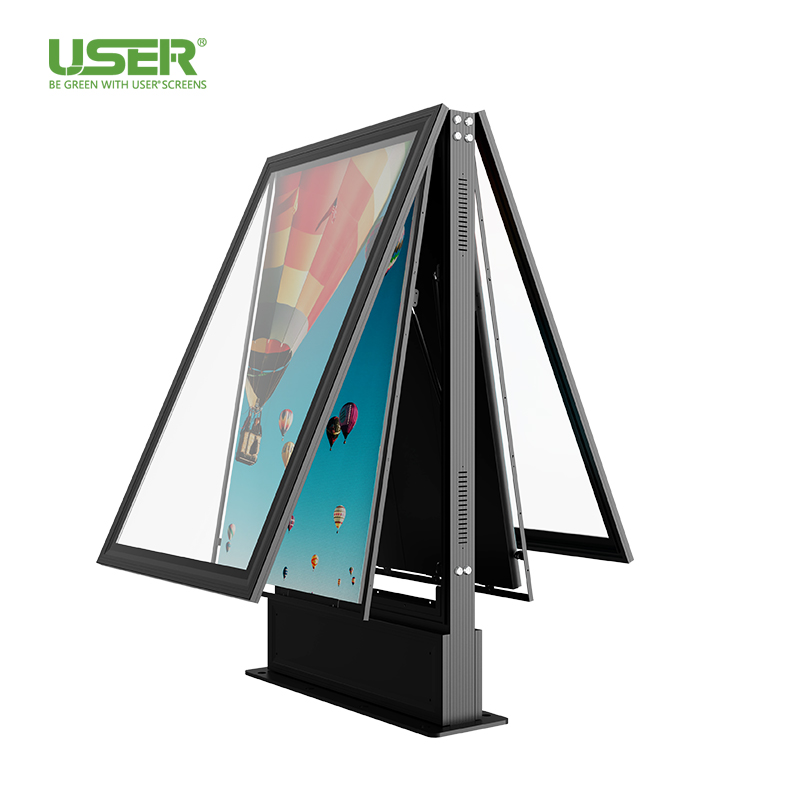

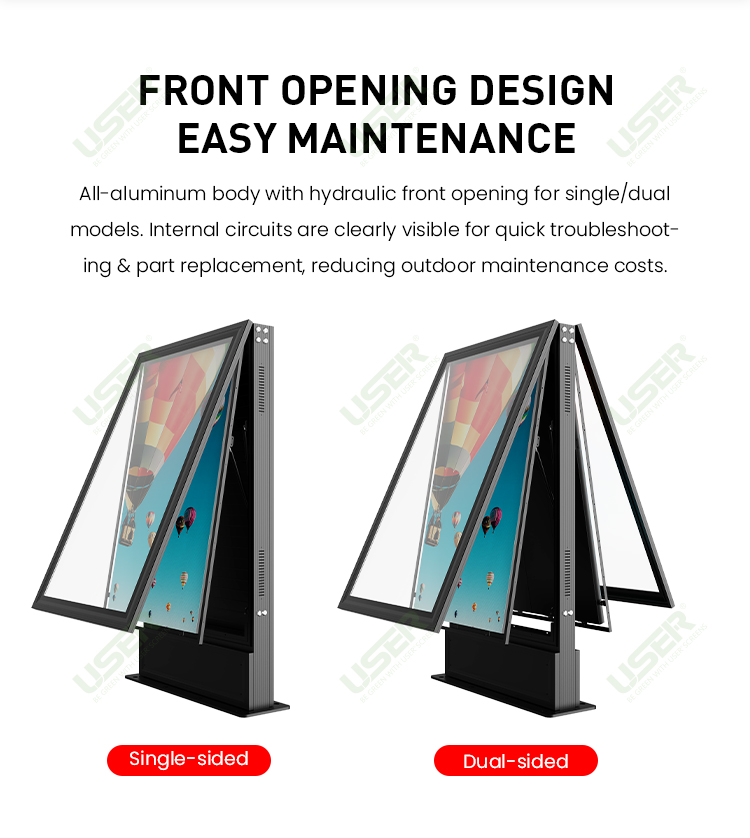

FRONT OPENING DESIGNEASY MAINTENANCE
All-aluminum body with hydraulic front opening for single/dualmodels. Internal circuits are clearly visible for quick troubleshoot-ing & part replacement reducing outdoor maintenance costs.

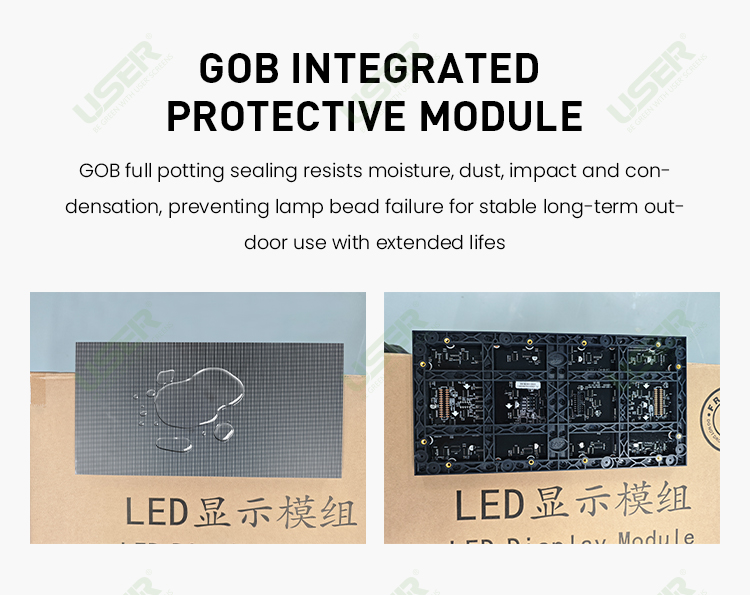

GOB INTEGRATEDPROTECTIVE MODULE
GOB full potting sealing resists moisture, dust, impact and con-densation, preventing lamp bead failure for stable long-term out-door use with extended lifes

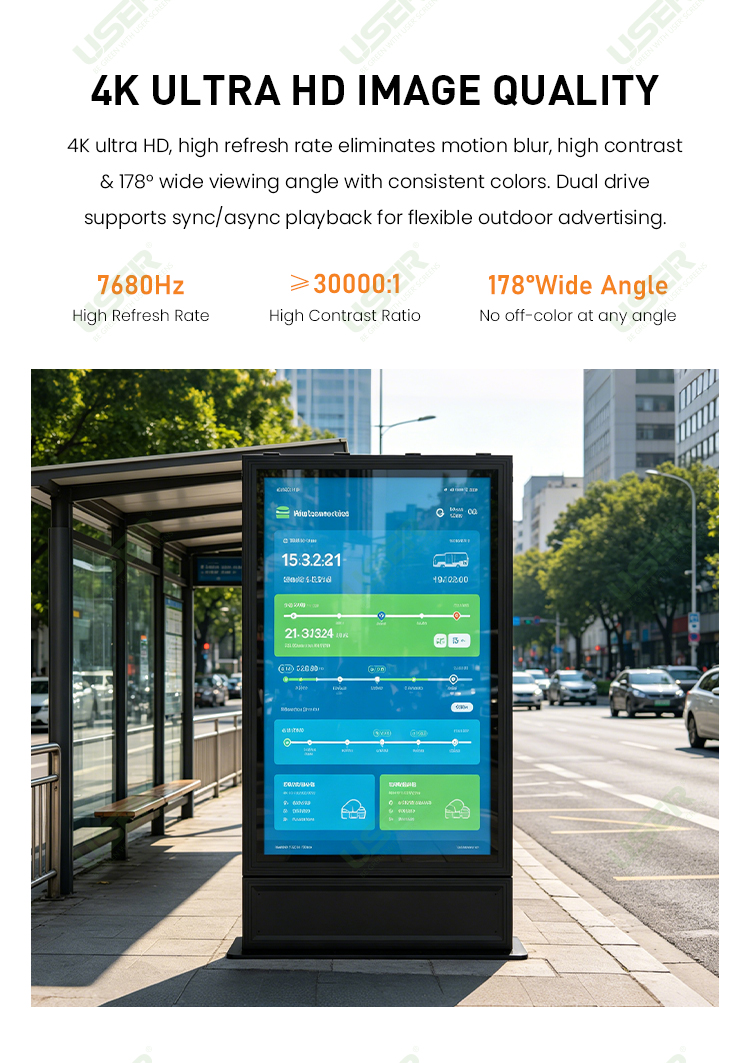

4K ULTRA HD IMAGE QUALITY
4K ultra HD, high refresh rate eliminates motion blur, high contrast& 178° wide viewing angle with consistent colors. Dual drivesupports sync/async playback for flexible outdoor advertising.





Brand: USER
Refresh Rate: ≥3840Hz
Brilliance control: WIFI/USB/4G/Lan
Horizontal view/vertical view: 140°(Horizontal)/140°(Vertical)
Working Temperature: -20 to 60°C
Operating Power Source: AC110-120/200-240V 50/60Hz
Service Life: >100000 hours
IP Rating: IP65

Brand: USER
Product Model: FS-XD-P1.2-COB75 / FS-XD-P1.4-COB75 / FS-XD-P1.8-COB75
Encapsulation Method: Encapsulation Inverted COB Flip-chip COB
Pixel Pitch (mm): 1.24 / 1.48 / 1.86
Screen display size:938×1666
Resolution (W x H) (pixels): 756×1344 / 630×1120 / 504×896
Display ratio (W x H): Standard 9: 16
Display area: 1.5627
Total weight: 215

Brand: USER
Pixel Pitch(mm): 2.50mm/3.076mm/4.0mm
Model:US-FX2.5/US-FX3.076/US-FX4
Brightness: 4000-4500nits
Lamp face protection level:IP65
Packaging method: 60000 hours
Application: Outdoor
Use: advertising publish, retail store, shopping mall

Brand: USER
Pixel Pitch(mm): 4.44mm/5.7mm/6.67mm/8mm/10mm
Model:US-FC4.44/US-FC5.7/US-FC6.67/US-FC8/US-FC10
Brightness: 4000-4500nits
Lamp face protection level:IP65
Packaging method: 60000 hours
Application: Outdoor
Use: advertising publish, retail store, shopping mall
